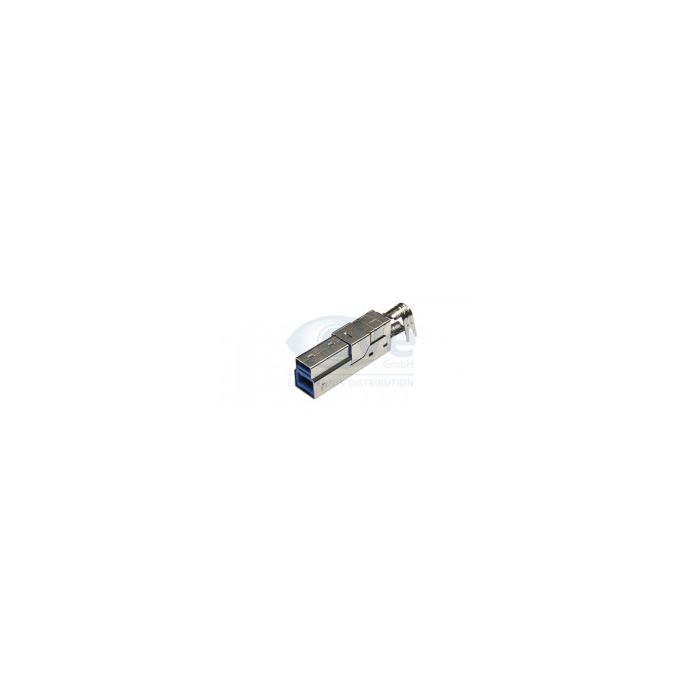

USB-B STEKKER MALE 3.0

SPECIFICATION:
Current rating: 1A
Voltage rating: 30V
Insulation resistance: 100 M¦¸ min.
Contact resistance: 30 m¦¸ max.
Dielectric voltage: 500 VAC
Operation temperature: -55 ¡ãC to +105 ¡ãC

MECANICAL:
Mating force: ¡Ü 35 N
Unmating force: ¡Ý 8 N

MATERIAL:
Insulator: PBT UL94V-0
Shell: SPCC
Contacts: Brass

FINISH:
Shell: Nickel plated
Contacts: Gold Flash in contact area
Tin plated in solder area

HANDLING:
Processing: Hand soldering
Packing: Bag
