USB-C/USB-A TESTER MET DISPLAY

Production Description

Measurement Ranges (and resolution accuracy):
Voltage: 3.30 - 30.0 V (0.01 V)
Current: 0.00 - 5.10 A (0.01 A)
Capacity accumulation: 0 – 99999 mAh (0.001 Ah)
Power accumulation: 0 – 999999 mWh (0.01 Wh)
Power calculation: 000.000 - 150.0 W (0.01 W)
Impedance: 1 - 999.9 Wh (0.1 Ω)
Temperature: 0 - 80 °C (1 °C)
Timing time: 999H59M59 S (1 S)
USB D+ voltage: 0 - 2.99 V (0.001 V)
USB D- voltage: 0 - 2.99 V (0.001 V)

Product Details:

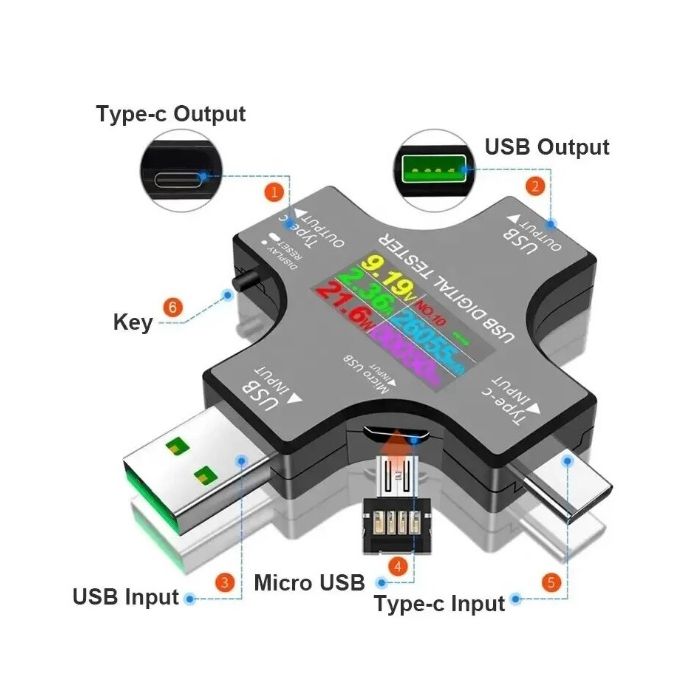

Input Interface:
Type-C / Micro USB / USB
Output interface: Type-C / USB
Timed charge reminder settings: 24-hour countdown
Full charge threshold parameters: < 2 W / 0.5 hours
Refresh time: > 500mS / time
Measurement rate: about 0.5 time / S
Alarm mode: siren sound and display prompt (double warning)
Display type: micro-power LCD module LCM white font in English display
Product dimensions: 60 x 60 x 11 mm
Current consumption: < 0.02 A
