EXPERIMENTEER PRINTPLAAT 100X160MM 16P IC 2.54MM RASTER MET37P DIN 41617 CONNECTOR EPOXY

Features
• Test boards with Cu layer made of Epoxy resin glass fabric
• For electronic professions in accordance with IHK regulations


Technical Specifications
Dimensions: 160x100mm
Pitch: 2,54mm
Holes Ø: 1mm
Cu Layer: 35μm
Material Thickness: 1,5mm

Microprocessor Board, Cu single-sided

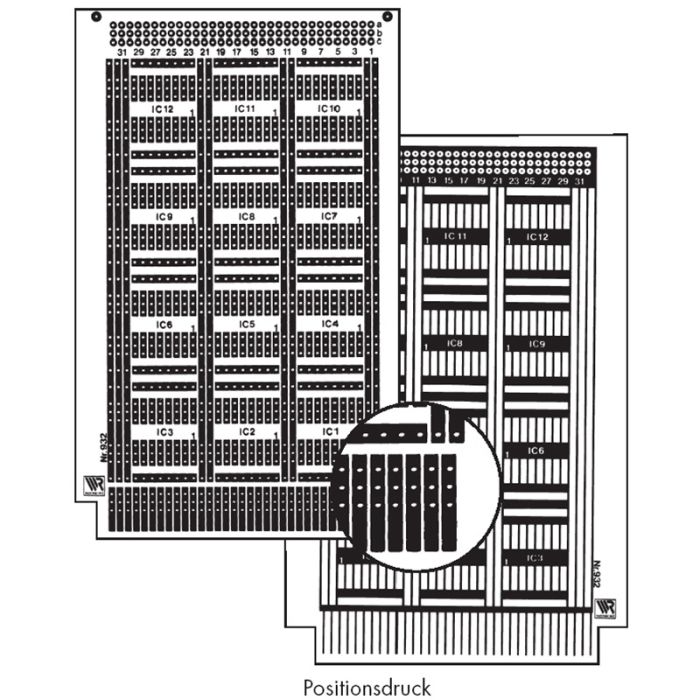

PCB track for 12 pieces 16-pin IC-socket
Material: Epoxy
Socket: 31-pin, DIN 41617, pitch: 2,50mm
32-/64-/96-pin, DIN 41612, pitch: 2,54mm
33-pin, direct, pitch: 2,50mm
