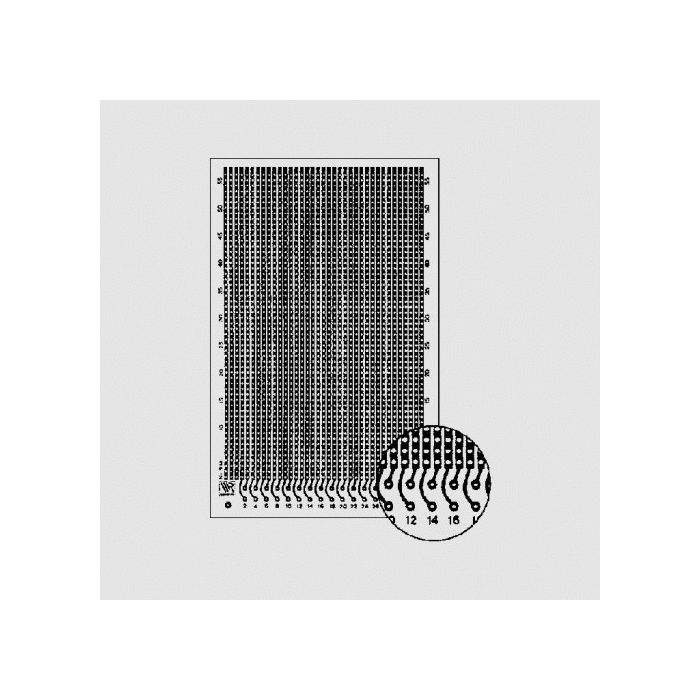

EXPERIMENTEER PRINTPLAAT BAAN RASTER 2,54MM EN 32P DIN41612CONNECTOR AANSLUITING EPOXY 5 STUKS
€ 24,95
€ 20,62
Artikelnummer
UP914EP
- ArtikelnummerUP914EP
- MerkRADEMACHER
- Aantal 10+ € 22,45 € 18,55
Features
Test boards with Cu layer made of Epoxy resin glass fabric
For electronic professions in accordance with IHK regulations
Technical Specifications
Dimensions: 160x100mm
Pitch: 2,54mm
Holes Ø: 1mm
Cu Layer: 35μm
Material Thickness: 1,5mm
Dot Matrix, Cu single-sided
Material: Epoxy
Conductor line: 37
Socket: 32 pin, DIN 41612, housing D, pitch: 2,54mm
with rear position print for clear and easy assembly
Test boards with Cu layer made of Epoxy resin glass fabric
For electronic professions in accordance with IHK regulations
Technical Specifications
Dimensions: 160x100mm
Pitch: 2,54mm
Holes Ø: 1mm
Cu Layer: 35μm
Material Thickness: 1,5mm
Dot Matrix, Cu single-sided
Material: Epoxy
Conductor line: 37
Socket: 32 pin, DIN 41612, housing D, pitch: 2,54mm
with rear position print for clear and easy assembly
