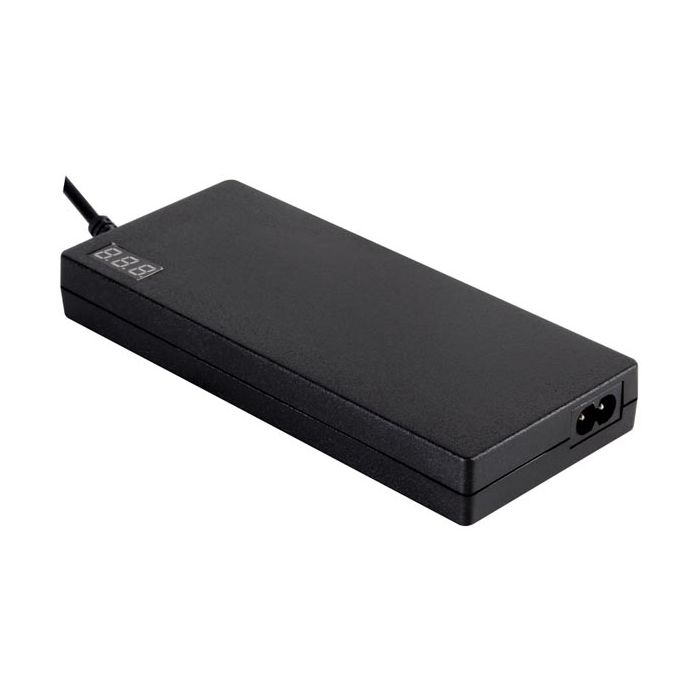

UNIVERSELE LAPTOP VOEDING 15-20V 120W

Kenmerken

• 11 verwisselbare pluggen meegeleverd
• automatische voltage-selectie
• LCD-scherm geeft voltage weer
• modern en intelligent design
• bescherming tegen overspanning / overstroom

Specificaties

• ingang: 100-240 VAC 2.0 A 50/60 Hz
• vermogen: 120 W
• max. uitgangsstroom: 8000 mA
• uitgang: 15 V / 16 V / 18.5 V (18 V) / 19.5 V (19 V) / 20 V 120 W max.
• pluggen:
  • PLUGSPA01(0 - 7.5 A): 6.5 x 4.4 mm / 1.4 mm
    • Fujitsu: 16 V - 3.36 A / 3.75 A
    • Sony: 16 V - 3.75 A / 4 A
  • PLUGSPA02(0 - 6.5 A): 6.5 x 4.4 mm / 1.4 mm
    • Fujitsu: 19 V - 3.16 A
    • Sony: 19.5 V - 2.15 A / 3 A / 3.9 A / 4.1 A / 4.7 A / 5.13 A / 6.15 A
    • Sony: 19 V - 3.16 A
  • PLUGSPA03(0 - 8 A): 6.3 x 3.0 mm
    • NEC: 15 V - 4 A
    • Toshiba: 15 V - 3 A / 4 A / 5 A / 6 A / 8 A
  • PLUGSPA04(0 - 7.5 A): 5.5 x 2.5 mm
    • IBM: 16 V - 3.5 A / 3.36 A / 4.5 A
  • PLUGSPA05(0 - 6.5 A): 5.5 x 2.5 mm
    • Delta: 19 V - 3.42 A / 4.47 A / 4.74 A
    • HP, Compaq: 18.5 V - 4.9 A / 6.5 A
    • HP, Compaq: 19 V - 3.16 A / 4.74 A
    • Compaq: 19 V - 3.16 A / 3.42 A / 4.8 A / 4.9 A / 6.3 A
    • NEC, Dell: 19 V - 3.16 A / 6.3 A
    • Fujitsu: 19 V - 3.16 A / 4.22 A
    • Liteon, Toshiba: 19 V - 3.16 A / 3.42 A / 3.95 A / 4.74 A / 6.3 A
    • IBM: 19 V - 4.2 A
    • Acer, Asus: 19 V - 3.42 A / 4.74 A / 6.3 A
    • HP: 19 V - 3.95 A
    • Gateway: 19 V - 3.16 A / 3.68 A / 4.74 A
    • Lenovo: 19 V - 3.16 A / 3.42 A
  • PLUGSPA06(0 - 6 A): 3 pin
    • Dell: 20 V - 3.5 A / 4.5 A
  • PLUGSPA07(0 - 6.5 A): 5.5 x 1.7 mm
    • Acer: 19 V - 1.58 A / 3.42 A / 4.74 A
    • Dell, HP: 19 V - 1.58 A
    • Liteon: 19 V - 3.95 A / 4.74 A
  • PLUGSPA08(0 - 6.5 A): 4.8 x 1.7 mm
    • HP, Compaq, LG: 18.5 V - 3.5 A
    • HP, Compaq, LG, Acer: 19 V - 4.74 A
    • Delta, NEC: 19 V - 2.64 A
    • Asus: 19 V - 2.1 A / 2.64 A
    • Compaq: 18.5 V - 2.7 A / 3.8 A / 4.9 A
  • PLUGSPA09(0 - 6.7 A): 7.4 x 5.0 mm
    • Dell: 19.5 V - 2.64 A / 3.34 A / 4.62 A / 6.7 A
  • PLUGSPA10(0 - 6.5 A): 7.4 x 5.0 mm
    • HP: 18.5 V - 3.5 A / 4.74 A
    • HP, Compaq: 18.5 V - 3.5 A / 4.9 A / 6.5 A
  • PLUGSPA11(0 - 6.5 A): 5.5 x 2.1 mm
    • Acer: 19 V - 3.16 A / 3.42 A / 4.74 A
    • Asus: 19 V - 2.64 A / 6.5 A
    • • kabellengte: ± 120 cm
      • afmetingen:
        • voedingsadapter: 163 x 71 x 21 mm
        • pluggen: 46 x 18 x 13 mm
      • weight: 398 g
