ULTRACAP 5F 3V 20X10MM P5,0

• Rated voltage: 3V DC • Rated capacitance: 3...100F • Tolerance: -10...+20% • High capacitance and low ESR • High cycle life of 500’000 cycles • Excellent DC life performance: 1000h @65°C • Temperatur range: -40...+65°C • Anti-wetting design • Small size

C35S_

Ultracapacitors with 35mm Ø

• Rated voltage: 3V DC • Rated capacitance:: 330F and 360F • Tolerance: 0...+20% • Highest power density based on ultra-low ESR • High cycle life of 1 million cycles • Excellent DC life performance: 1500h @65°C • Temperatur range: -40...+65°C • Hermetically sealed cell • Radial terminals for PCB mounting • Most ruggedized cell based on all laser welded design

Part Nr.	CN	UN	RESR	Imax.	IS
	[F]	[V DC]	[mOhm]	[A]	[A]
C08S-3R0-0003	3	3,0	45	3,7	1,3
C10S-3R0-0005	5	3,0	40	6,1	1,6
C10S-3R0-0010	10	3,0	25	10,7	2,5
C16S-3R0-0025	25	3,0	15	23,1	3,4
C18S-3R0-0050	50	3,0	10	42,9	5,5
C22S-3R0-0100	100	3,0	8	65,2	10,7
C35S-3R0-0330	330	3,0	0,9	355	33
C35S-3R0-0360	360	3,0	1,4	329	25
CN = Rated Capacitance, Un = Rated Voltage, RESR = typical ESR (@1kHz), IMax. =Max Peak Current, IS = Usable Continuous Current

Part Nr.	D / W	L	P	d	Weight
	[mm]	[mm]	[mm]	[mm]	[g]
C08S-3R0-0003	8,0	20,0	3,5	0,6	1,6
C10S-3R0-0005	10,0	20,0	5,0	0,6	2,3
C10S-3R0-0010	10,0	30,0	5,0	0,6	3,5
C16S-3R0-0025	16,0	25,0	7,5	0,8	7,5
C18S-3R0-0050	18,0	40,0	7,5	0,8	13,5
C22S-3R0-0100	22,0	45,0	10,0	1,0	21
C35S-3R0-0330	35,3	62,7	-	-	70
C35S-3R0-0360	35,3	62,7	-	-	72

RoHS, REACH and UL810
• C08S_ to C22S
Shock and Vibration: MIL-STD-202, Method 213, Fig. 1, condition C; Method 204 (acc. AEC-Q200)
• C35S_:
Shock: IEC 60068-2-27, Vibration: ISO 16750 table 12

C08S_ to C22S_

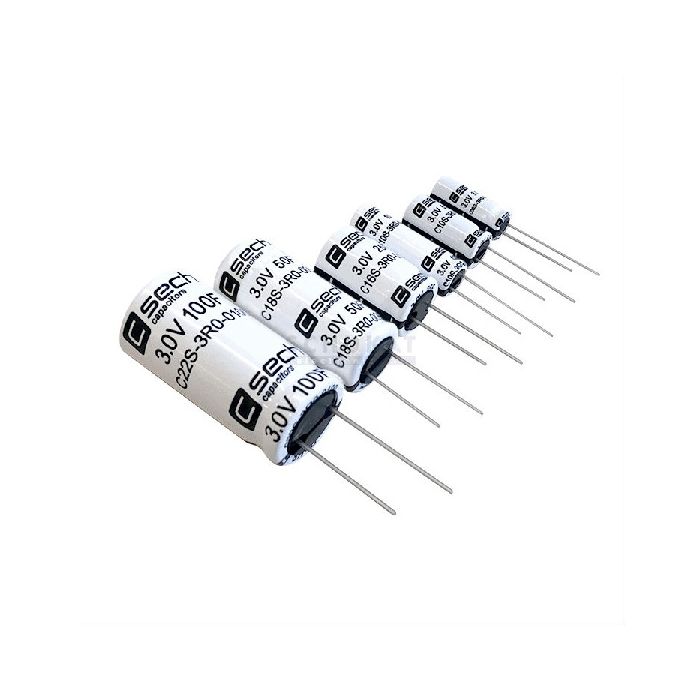

Small Cell Ultracapacitors, Solderable Type
