IR RECEIVER MODULES FOR REMOTE CONTROL 38KHZ

The TSOP312.. - series are miniaturized receivers for
infrared remote control systems. PIN diode and
preamplifier are assembled on lead frame, the epoxy
package is designed as IR filter.
The demodulated output signal can directly be
decoded by a microprocessor. TSOP312.. is the standard
IR remote control receiver series for 3 V supply
voltage, supporting all major transmission codes.
Features
• Photo detector and preamplifier in one package
• Internal filter for PCM frequency
• Improved shielding against electrical field
disturbance
• TTL and CMOS compatibility
• Output active low
• Supply voltage: 2.7 V to 5.5 V
• Improved immunity against ambient light
Mechanical Data

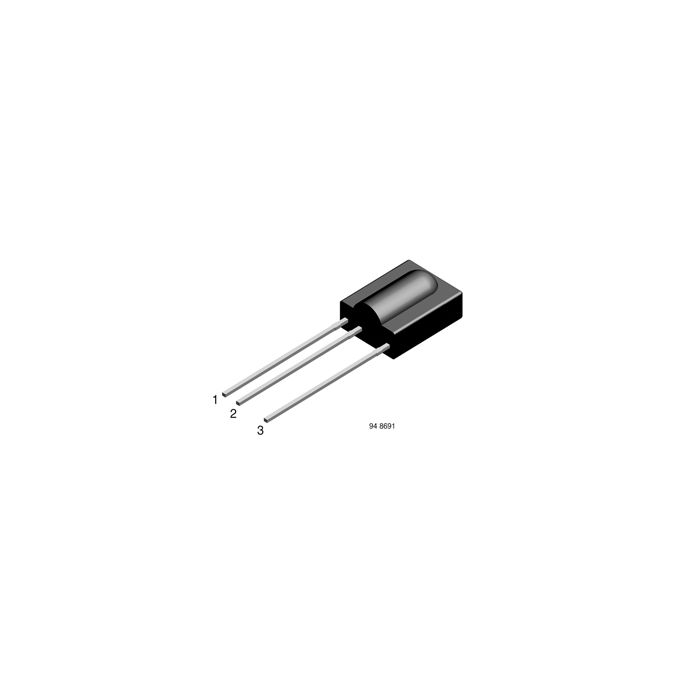

Pinning:
1 = GND, 2 = VS, 3 = OUT
