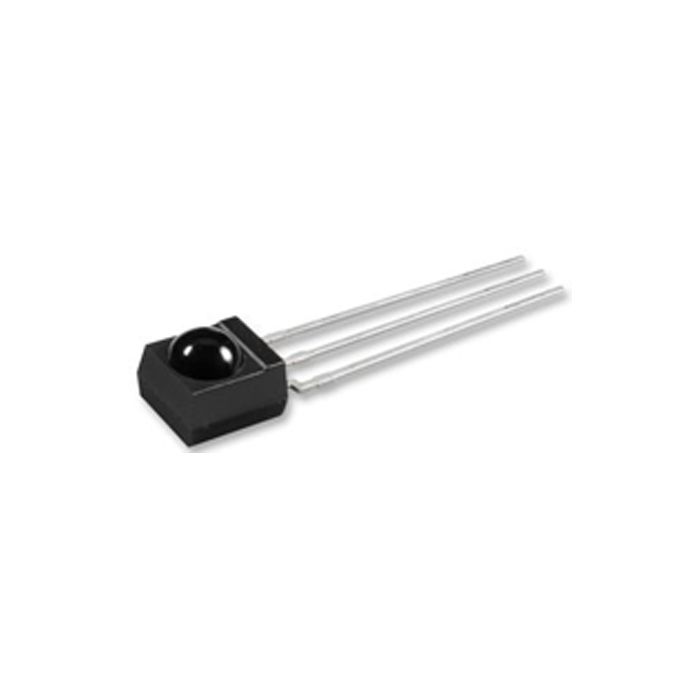

IR RECEIVER MODULES FOR REMOTE CONTROL 38KHZ
€ 1,82
€ 1,50
Artikelnummer
TSOP2238
- ArtikelnummerTSOP2238
- MerkVISHAY
- Aantal 10+ € 1,21 € 1,00
Carrier Frequency 38kHz
Dimensions 6 x 5.6 x 6.95mm
Height 6.95mm
Length 6mm
Maximum Transmission Distance 45m
Mounting Type PCB Through Hole
Number of Pins 3
Output Current 5mA
Wavelength of Peak Sensitivity 950nm
Width 5.6mm
Dimensions 6 x 5.6 x 6.95mm
Height 6.95mm
Length 6mm
Maximum Transmission Distance 45m
Mounting Type PCB Through Hole
Number of Pins 3
Output Current 5mA
Wavelength of Peak Sensitivity 950nm
Width 5.6mm
