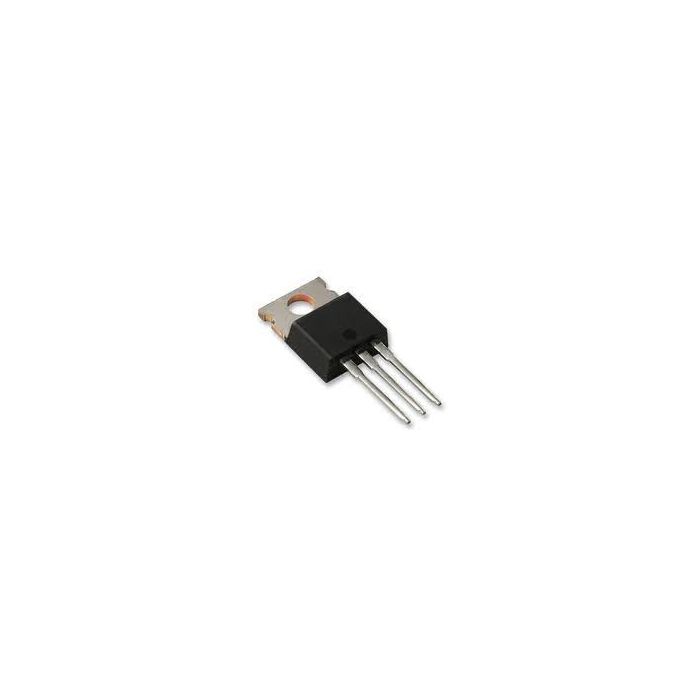

SPANNINGSREGELAAR +5.0V 1A TO-220 LOW DROP

The TS2940 series of fixed-voltage monolithic micro-power voltage regulators is designed for a wide range of
applications. This device excellent choice of use in battery-power application. Furthermore, the quiescent current
increases on slightly at dropout, which prolongs battery life.
This series of fixed-voltage regulators features very low ground current (100uA Typ.) and very low drop output voltage
(Typ. 60mV at light load and 600mV at 1A). This includes a tight initial tolerance of 1% typ., extremely good line regulation
of 0.05% typ., and very low output temperature coefficient.

Features
�� Input voltage max. 35V
�� Dropout voltage typically 0.6V @Io=1A
�� Output current up to 1A
�� Output voltage trimmed before assembly
�� -18V Reverse peak voltage
�� Input voltage max. 35V
�� +30V Input over voltage protection
�� +60V Transient peak voltage
�� Internal current limit
�� Thermal shutdown protection
