TRANSFORMATOR 1:1 600-600 OHM OPEN
€ 4,48
€ 3,70
Artikelnummer
TRS1/1N
- ArtikelnummerTRS1/1N
- MerkBrand
- Aantal 5+ € 4,03 € 3,33

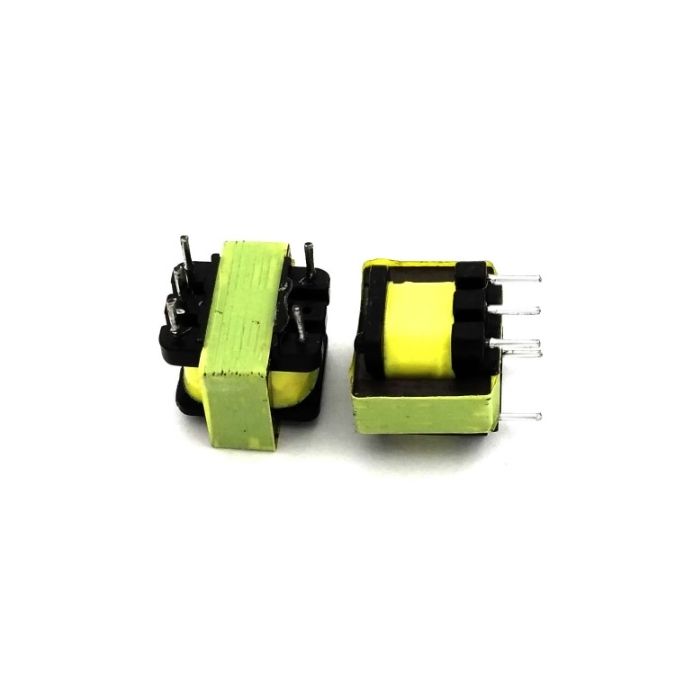

600 ohm audio-frequency transformer 600 : 600, Audio isolation transformer 1:1, Toroidal with 5 pins
One point is to explain the impedance problem of the coupled isolating transformer: this transformer is 600 ohm: 600 ohm audio transformer, the impedance 600 ohm refers to the AC impedance, and the actual multimeter is a DC impedance, at about 100 ohm.
Frequency Range: 50Hz--100KHz
AC Impedance Ratio: about 600 : 600 ohm
Inductance: about 1.6H
Withstand Voltage: 1000V above
