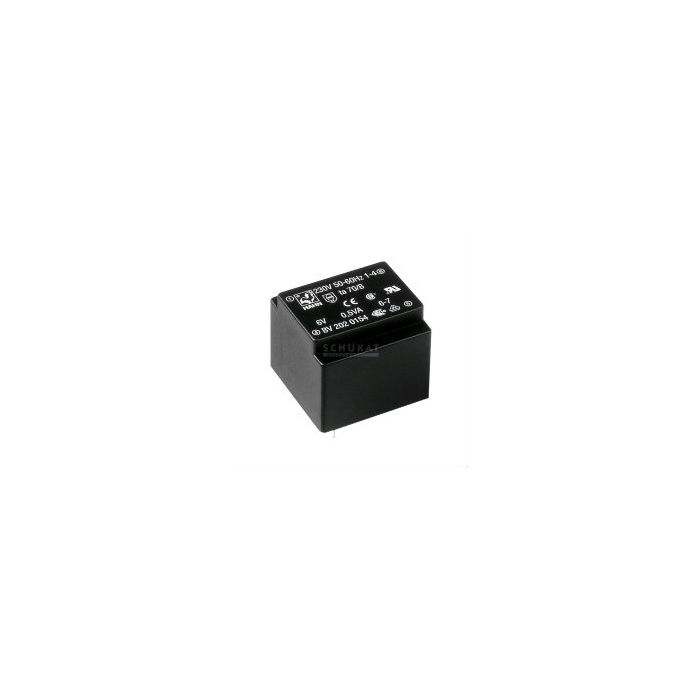

TRANSFORMATOR 0.50VA 1X7.5V 1X67MA

€ 3,78 € 3,12

Artikelnummer

1070005M

Transformator\

Toon meer Toon minder

Features

• Winding of double coated copper wire for better insulation, vacuum casted, two chambers
• Connections for PCB use

Technical Specifications



Temperature Resistance Class¹⁾:	Ta 70/B
End Temperature in Case of Short Circuit, Max²⁾:	175°C
End Temperature in Standard Use:	120°C
Permissible Overtemperature³⁾:	50K
Primary Voltage (50/60Hz):	230V AC
Performance, Max. (Ta 70/B)²⁾:	0,5VA
Test Voltage:	4kV/50Hz
No-Load Voltage (According to VDE 0570):	<2 x U_{N sec}
¹⁾ The Maximum Permissible Continuous Ambient Temperature Applies in the Event of Short-Circuit^{, 2)} Taking into Account the Indicated Temperature Resistance Class,³⁾ At 70°C Ambient Temperature
