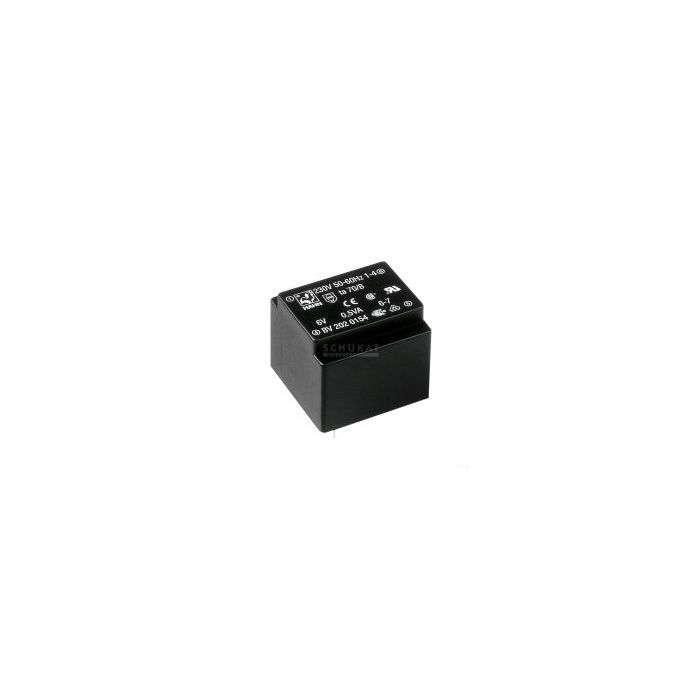

TRANSFORMATOR 0.50VA 1X15V 1X33MA
€ 3,78
€ 3,12
Artikelnummer
1150005M
- Artikelnummer1150005M
- MerkHAHN
- Aantal 5+ € 3,39 € 2,80
| Features |
| • Winding of double coated copper wire for better insulation, vacuum casted, two chambers • Connections for PCB use |
 |
| Technical Specifications |
|
|
| Temperature Resistance Class1): | Ta 70/B |
| End Temperature in Case of Short Circuit, Max2): | 175°C |
| End Temperature in Standard Use: | 120°C |
| Permissible Overtemperature3): | 50K |
| Primary Voltage (50/60Hz): | 230V AC |
| Performance, Max. (Ta 70/B)2): | 0,5VA |
| Test Voltage: | 4kV/50Hz |
| No-Load Voltage (According to VDE 0570): | <2 x UN sec |
| 1) The Maximum Permissible Continuous Ambient Temperature Applies in the Event of Short-Circuit, 2) Taking into Account the Indicated Temperature Resistance Class, 3) At 70°C Ambient Temperature | |
|
|
