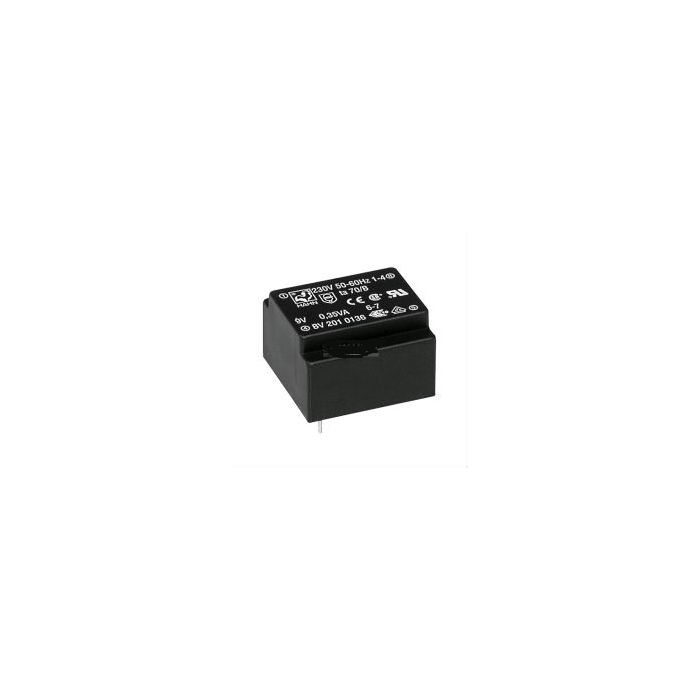

TRANSFORMATOR 0.35VA 2X12V 2X12MA
€ 4,38
€ 3,62
Artikelnummer
2150003M
- Artikelnummer2150003M
- MerkHAHN
- Aantal 5+ € 3,93 € 3,25
Features |
• Winding of double coated copper wire for better insulation, vacuum casted, two chambers • Connections for PCB use |
Technical Specifications |
Temperature Class1): | Ta 70/B |
End Temperature in Case of Short Circuit, Max 2): | 175°C |
End Temperature in Standard Use: | 120°C |
Permissible Overtemperature3): | 50K |
Primary Voltage (50/60Hz): | 230V AC |
Power, Max. (Ta 70/B)2): | 0,35VA |
Insulation Voltage: | 4kV/50Hz |
No-Load Voltage (According to VDE 0570): | <2 x UN sec |
1) The Maximum Permissible Continuous Ambient Temperature Applies in the Event of Short-Circuit, 2) Taking into Account the Indicated Temperature Resistance Class, 3) At 70°C Ambient Temperature | |
