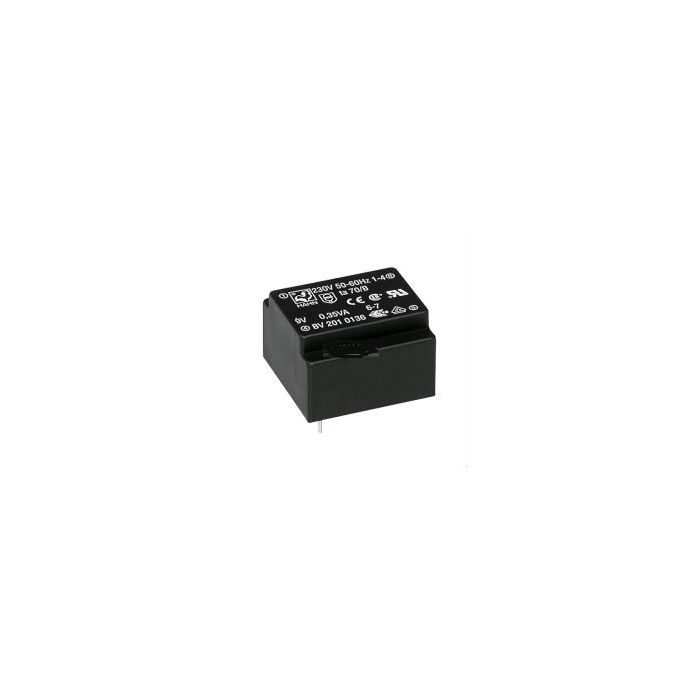

TRANSFORMATOR 0.35VA 1X24V 1X15MA
€ 4,38
€ 3,62
Artikelnummer
1240003M
- Artikelnummer1240003M
- MerkHAHN
- Aantal 5+ € 3,93 € 3,25
| Features |
| • Winding of double coated copper wire for better insulation, vacuum casted, two chambers • Connections for PCB use |
 |
| Technical Specifications |
|
|
| Temperature Class1): | Ta 70/B |
| End Temperature in Case of Short Circuit, Max 2): | 175°C |
| End Temperature in Standard Use: | 120°C |
| Permissible Overtemperature3): | 50K |
| Primary Voltage (50/60Hz): | 230V AC |
| Power, Max. (Ta 70/B)2): | 0,35VA |
| Insulation Voltage: | 4kV/50Hz |
| No-Load Voltage (According to VDE 0570): | <2 x UN sec |
| 1) The Maximum Permissible Continuous Ambient Temperature Applies in the Event of Short-Circuit, 2) Taking into Account the Indicated Temperature Resistance Class, 3) At 70°C Ambient Temperature | |
