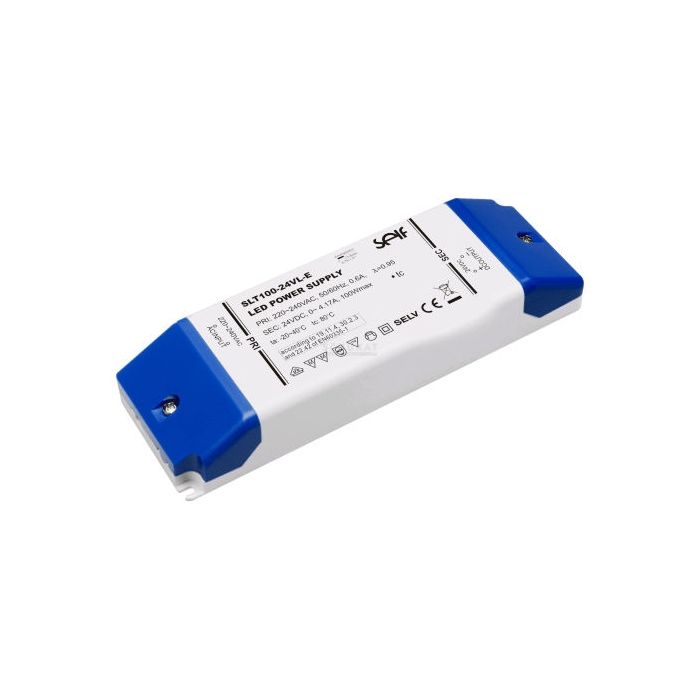

TRAFO LED 24V/4.17A 100.0W
€ 57,95
€ 47,89
Artikelnummer
SLT100-24V
- ArtikelnummerSLT100-24V
- MerkSELF
- Aantal 3+ € 55,04 € 45,49
Features
| • Independent power supply • Class II protection, SELV output • Constant voltage • IP20 • Protected against over load, short circuit, over voltage and over temperature • EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 etc. • For LED lighting applications • 5 years warranty |
 |
| Technical Specifications |
|
|
| Input Voltage: | 220...240V AC |
| Input Inrush Current: | 50A |
| Operating Temperature: | -20...+40°C |
| Nominal Life-Time (Tc=80°C): | |
| SLT100-12V | 40.000h |
| SLT100-24V | 50.000h |
| Weight: | 316g |
|
|
| Part Nr. | UA | IA | PA | URN | h |
| [V] | [A] | [W] | [mVp-p] | [%] | |
| SLT100-12V | 12 | 0...8,33 | 100 | 800 | 88,5 |
| SLT100-24V | 24 | 0...4,17 | 100 | 800 | 91,7 |
| UA = Output Voltage, IA = Output Current, PA = Output Power, URN = Ripple & Noise, h = Efficiency | |||||
|
|||||
| Labelling |
   SELV |
