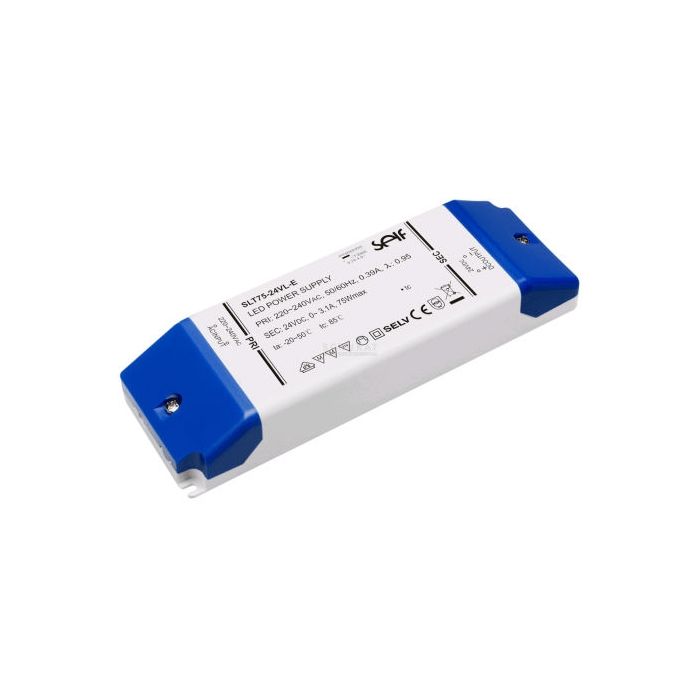

TRAFO LED 24V/3.10A 75.0W
€ 46,50
€ 38,43
Artikelnummer
SLT75-24V
- ArtikelnummerSLT75-24V
- MerkSELF
- Aantal 3+ € 44,17 € 36,50
Features
| • Independent power supply • Class II protection, SELV output • Constant voltage • IP20 • Protected against over load, short circuit, over voltage and over temperature • EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 etc. • For LED lighting applications |
 |
| Technical Specifications |
|
|
| Input Voltage: | 220...240V AC |
| Input Inrush Current: | 35A |
| Operating Temperature: | -20...+50°C |
| Nominal Life-Time (Tc=75°C): | 50.000h |
| Weight: | 300g |
|
|
| Part Nr. | UA | IA | PA | URN | h |
| [V] | [A] | [W] | [mVp-p] | [%] | |
| SLT75-24V | 24 | 0...3,1 | 75 | 800 | 87,73 |
| UA = Output Voltage, IA = Output Current, PA = Output Power, URN = Ripple & Noise, h = Efficiency | |||||
