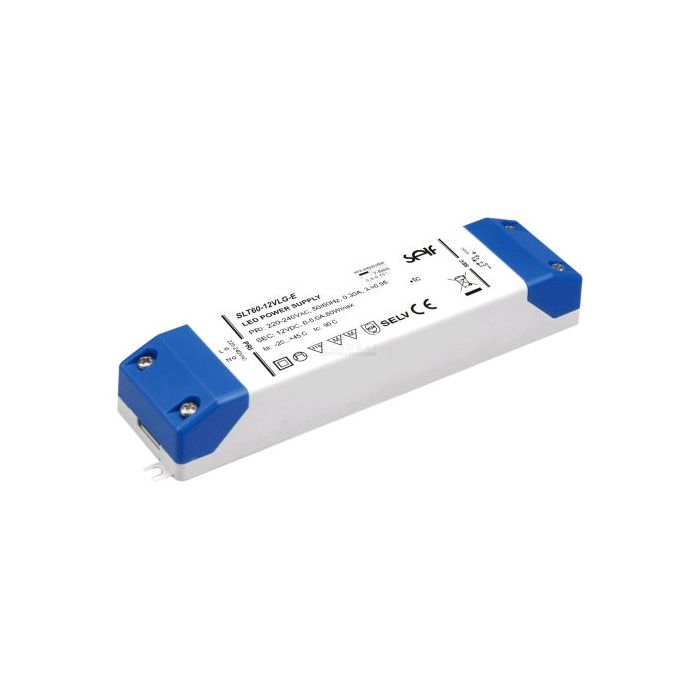

TRAFO LED 24V/2.50A 60.0W
€ 34,94
€ 28,88
Artikelnummer
SLT60-24V
- ArtikelnummerSLT60-24V
- MerkSELF
- Aantal 3+ € 33,19 € 27,43
Features
| • Independent power supply • Class II protection, SELV output • Constant voltage • IP20 • Protected against over load, short circuit, over voltage and over temperature • EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 etc. • For LED lighting applications • 5 years warranty |
 |
| Technical Specifications |
|
|
| Input Voltage: | 220...240V AC |
| Input Inrush Current: | 35A |
| Operating Temperature | |
| SLT60-12V | -20...+45°C |
| SLT60-24V | -20...+50°C |
| Nominal Life-Time | |
| SLT60-12VLG-E: | 30.000h/Tc=90°C |
| SLT60-24VLG-E: | 30.000h/Tc=85°C |
| Weight: | 260g |
|
|
| Part Nr. | UA | IA | PA | URN | h |
| [V] | [A] | [W] | [mVp-p] | [%] | |
| SLT60-12V | 12 | 0...5 | 60 | 90 | 87,8 |
| SLT60-24V | 24 | 0...2,5 | 60 | 40 | 89 |
| UA = Output Voltage, IA = Output Current, PA = Output Power, URN = Ripple & Noise, h = Efficiency | |||||
|
|||||
| Labelling |
  SELV |
