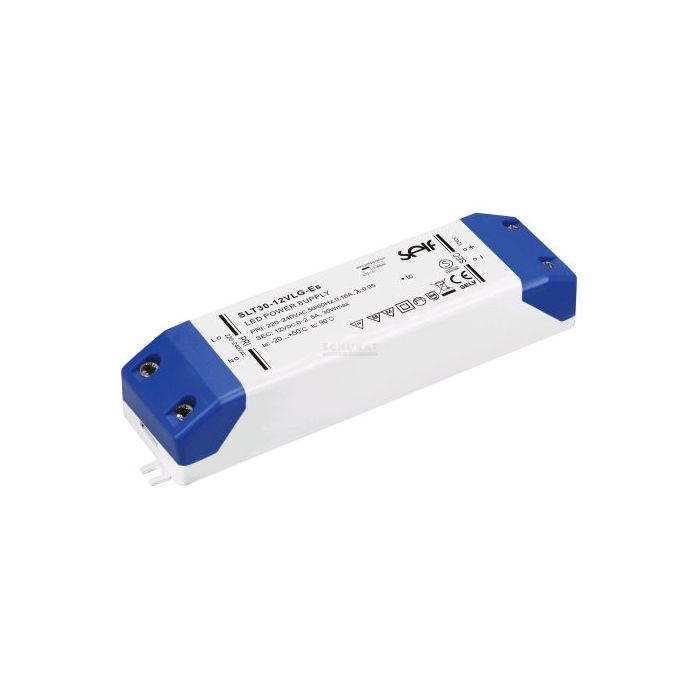

TRAFO LED 12V/2.50A 30.0W
€ 21,95
€ 18,14
Artikelnummer
SLT30-12V
- ArtikelnummerSLT30-12V
- MerkSELF
- Aantal 3+ € 19,75 € 16,32
Features
| • Independent power supply • Class II protection, SELV output • Constant voltage • IP20 • Protected against over load, short circuit, over voltage and over temperature • EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 etc. • For LED lighting applications • 5 years warranty |
 |
| Technical Specifications |
|
|
| Input Voltage: | 220...240V AC |
| Input Inrush Current: | 16A |
| Operating Temperature: | -20...+50°C |
| Nominal Life-Time (Tc=75°C): | 35.000h |
| Weight: | 200g |
|
|
| Part Nr. | UA | IA | PA | URN | h |
| [V] | [A] | [W] | [mVp-p] | [%] | |
| SLT30-12V | 12 | 0...2,5 | 30 | 200 | 84 |
| SLT30-24V | 24 | 0...1,25 | 30 | 400 | 85 |
| UA = Output Voltage, IA = Output Current, PA = Output Power, URN = Ripple & Noise, h = Efficiency | |||||
|
|||||
| Labelling |
  SELV |
