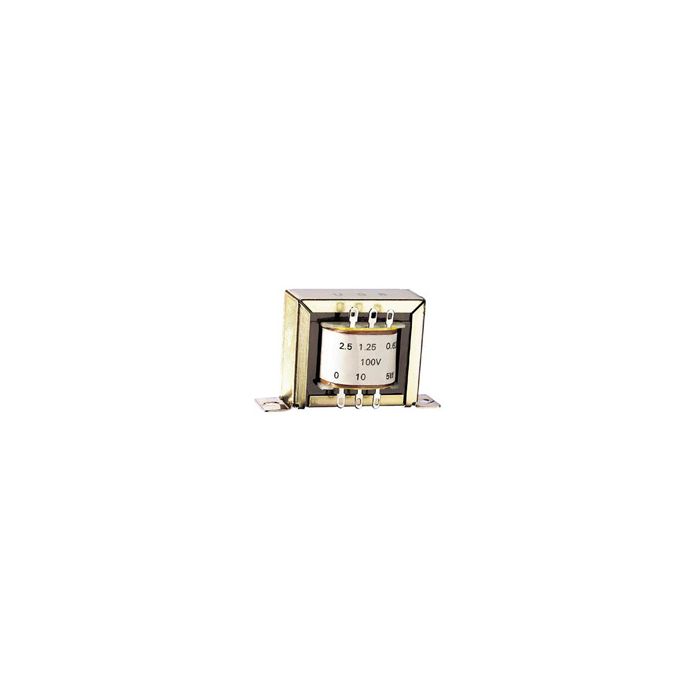

TRAFO INPUT 100V -> OUTPUT 0/4/8/16 OHM 10W
€ 15,95
€ 13,18
Artikelnummer
TR10.16
- ArtikelnummerTR10.16
- MerkVISATON
- Aantal 3+ € 15,15 € 12,52
100 V transformer for loudspeakers in PA systems.
Typical applications:
- Allows all 4 ohm, 8 ohm and 16 ohm speakers to be used in 100 volt networks
Technical Data:
Net weight 0,285 kg
Primary 10 W / 1 kOhm;
5 W / 2 kOhm;
2,5 W / 4 kOhm;
1,25 W / 8 kOhm;
0,625 W / 16 kOhm
Secondary 4; 8; 16 Ohm
Frequency response (-10 dB) 5019000 Hz (−3 dB)
Typical applications:
- Allows all 4 ohm, 8 ohm and 16 ohm speakers to be used in 100 volt networks
Technical Data:
Net weight 0,285 kg
Primary 10 W / 1 kOhm;
5 W / 2 kOhm;
2,5 W / 4 kOhm;
1,25 W / 8 kOhm;
0,625 W / 16 kOhm
Secondary 4; 8; 16 Ohm
Frequency response (-10 dB) 5019000 Hz (−3 dB)
