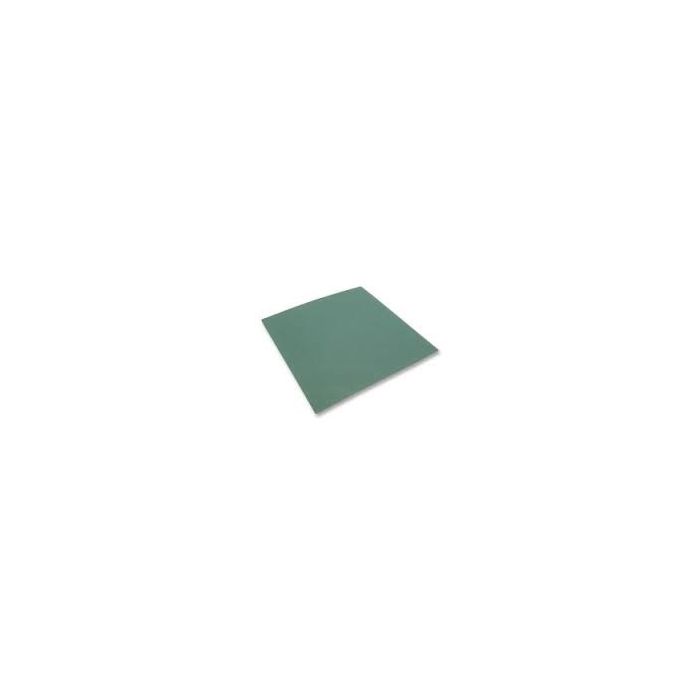

THERMOTAPE 25X50MM DUBBELZIJDIG ZELFKLEVEND
€ 3,94
€ 3,26
Artikelnummer
TMT25
- ArtikelnummerTMT25
- MerkFISCHER
- Aantal 10+ € 3,55 € 2,93
Thermally conductive foil both sides adhesive
width 25 x 50mm
description
insulating, double sided adhesive
overall thickness: 0.127 mm
truss material polyimide: (Kapton MT) 0.025mm
glue layer: acrylate (pressure sensitive) double-sided
thermal conductivity: 0,37 W/m·K
specific thermal resistance Rth: 3.7°C cm2/W
temperature range: -30°C... +125°C
holding force (overlapping): 0.86 MPa
holding force (shear rate)
Al 25°C 0.897 [MPa]
Al 150°C 0.345 [MPa]
Cu 25°C 0.828 [MPa]
Cu 150°C 0.31 [MPa]
Al2O3 25°C 1.17 [MPa]
Al2O3 150°C 0.34 [MPa]
dielectric strength: 5 kV (AC)
class of flammibility: UL 94 V-0
