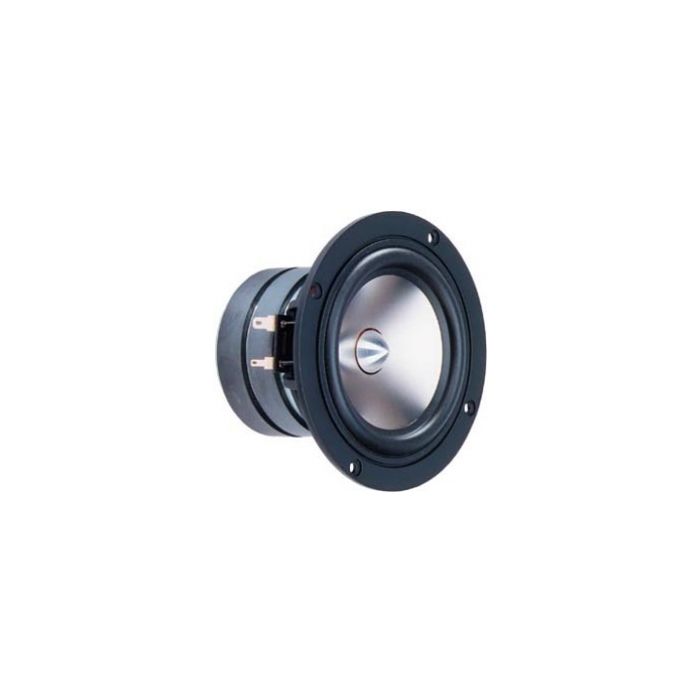

SPEAKER MID 8 OHM 40/60W 60-8000HZ 86DB 122MM

Nominal power handling 40 Watt
Peak power handling 60 Watt
Nominal impedance 8 Ohm
Frequency response fc - 8000 Hz
Mean sound pressure (nominal) 86 dB
(1 W/1 m)
Maximum cone displacement 4,5 mm
Resonance frequency 62 Hz
Magnetic induction 1,2 Tesla
Magnetic flux 300 µ Weber
Height of front pole-plate 4 mm
Voice coil diameter 20 mm
Height of winding 8,5 mm
Cutout diameter 101 mm
Net weight 1,05 kg
D.C. resistance Rdc 6,0 Ohm
Mechanical Q factor Qms 7,05
Electrical Q factor Qes 0,40
Total Q factor Qts 0,38
Equivalent volume Vas 6,92 l
Effective piston area Sd 54 cm2
Dynamically moved mass mmd 4 g
Force factor Bxl 4,8 T m
Inductance of the voice coil 0,7 mH
