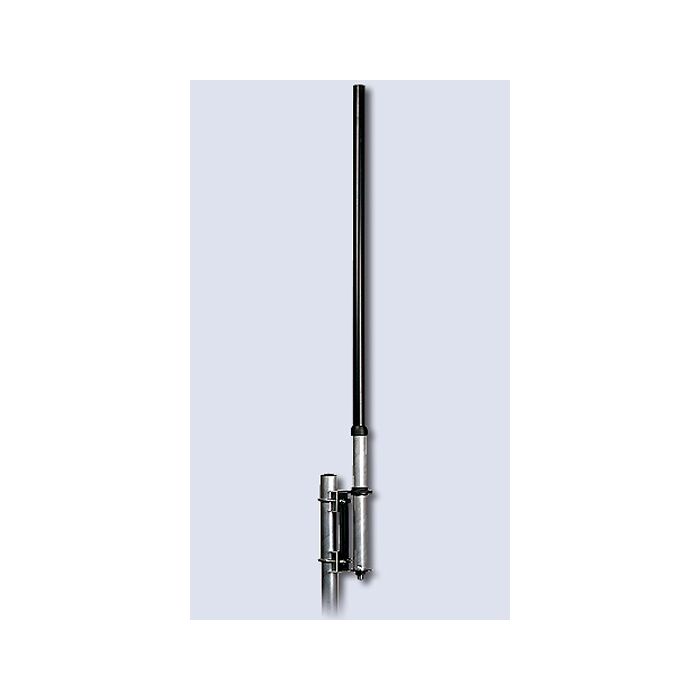

BASIS CB ANTENNE 27MHZ 1/4

Features: - Balcon or temporary installation antenna
- Omnidirectional
- Designed to work without Ground Plane
- Factory tuned at mid-band

Part Numbers: P/N 2107902.00


Electrical Data
- Type: 1/4 ¥ë helical loaded dipole
- Frequency range: 25-29 MHz
- Impedance: 50¥Ø
- Radiation (H-plane): 360¡Æ omnidirectional
- Polarization: linear vertical
- Gain: 0 dBd, 2.15 dBi
- Bandwidth @ SWR ¡Â 2: ¡Ã 5000 KHz
- SWR @ res. freq.: ¡Â 1.5
- Max. power:
100 Watts (CW) continuous
300 Watts (CW) short time
- Feed system / position: Direct / Base
- Connector: UHF-female

Mechanical Data
- Materials: Aluminium, Steel, Nylon, Copper
- Wind load / resistance: 36 N at 150 Km/h / 180 Km/h
- Wind surface: 0.03 m©÷
- Height (approx.): 960 mm
- Weight (approx.): 700 gr
- Mounting mast: ¨ª 25-32 mm
