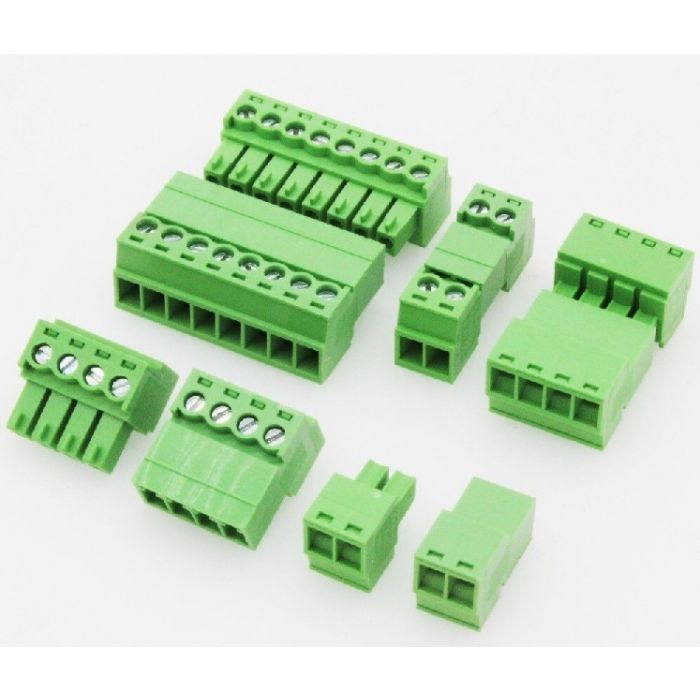

TERMINALBLOK 3P SCHROEF MALE + FEMALE 300V 8A

€ 3,01 € 2,49

Artikelnummer

EDG15/03

Toon meer Toon minder

Pitch: 3,81mm

Poles: 3P

Screw: M2, Steeel, Zinc plated

Contact: Brass Tin plated

Wire cage: Brass, Ni plated

Housing: PA66, UL94V-0

Rated voltage: 300V

Rated current: 8A

Withstanding voltage: AC2000V/1 min

Wire range: 28-16 AWG

Temperature range: -40gr C - + 105gr C

max soldering: + 250gr C

Torque: 0,2 Nm

STrip length: 7mm
