MOBIELE CB ZENDER 27MHZ 40KAN 4W MULTICOLOR DISPLAY

Name: MOBIELE CB ZENDER 27MHZ 40KAN 4W MULTICOLOR DISPLAY
SKU: TCB900HP
Price: 109.95 EUR
Availability: InStock

€ 109,95 € 90,87

Artikelnummer

TCB900HP

TTI - TCB-900H

Toon meer Toon minder

ArtikelnummerTCB900HP
MerkTTI

Aantal 3+ € 104,45 € 86,32

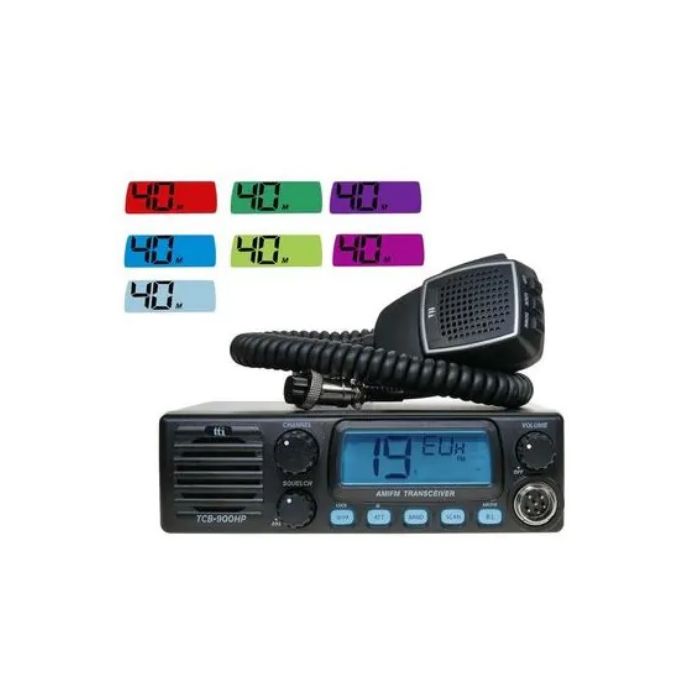

De TTI TCB-900HP is het nieuwste model voorluidsprekers in het TTI-assortiment. De TCB-900HP radiobehuizing heeft een grote koelrib aan de achterkant. Het display is geüpgraded met 7 verschillende displaykleuren waaruit u kunt kiezen.

Frequentiebereik: 26,965 - 27,405 MHz

Features

Modulation: AM / FM
Multi-bands: Yes
Output power: 4 Watt / Duty cycle 10% @ 13.8V DC
Channels: 40 AM / FM
Front speaker: Yes
Display type: LCD display
Display colors: Green / Orange / Purple / Blue / Cyaan / Yellow / Clear Blue
Export version: 20 Watt
Squelch: DSS (Dynamic Squelch System) / Manual squelch /
Emergency channel: Yes
Keypad lock: Yes
Scan function: Yes
External speaker socket: Yes
S-meter: Yes
TOT (time out timer): Yes

Electrical data

Voltage: 13,8 Volt / 24 Volt /
Operating temperature: -10° to +55° C
Operating mode: F3E (FM) / A3E (AM)
Frequency control: PLL synthesizer
Frequency tolerance: 0.002 %

Transmitter

Audio frequency response: 300 Hz - 3 kHz
Modulation AM: from 85% to 95%
Modulation FM: 1.8 kHz to ± 0.2 kHz
Harmonic suppression: Less than -54 dBm
Drain: 13.8 Volt: 1.6 A max.

Receiver

AM sensitivity: 1.4 µV for 10 dB
FM sensitivity: 0.8 µV for 20 dB SINAD
Frequency response: 300 Hz - 2.5 kHz
Adjacent channel selectivity: More than 60 dB
Maximum audio power: 2 Watt
Internal speaker: 8 Ohm, round
Receiving system: Dual conversion superheterodyne
IF frequencies: Double conversion 1st 10.695 MHz / 2nd 455 kHz
Audio distortion: Less than 8% @ 1 kHz
Image rejection: More than 60 dB
Conducted spurious: Less than -57 dB
Squelch: Adjustable, threshold less than 1 µV, DSS less than 2 µV

Mechanical data

Length: 170 mm
Height: 51 mm
Width: 170 mm
Weight: 1100 gram
Antenna connector: UHF (PL) female (SO-239)
Mike connector: 6 pin connector

Inside the box

Transceiver: 1 pcs
Microphone: 1 pcs
Fixing screws: 1 set
Mounting bracket: 1 pcs
Power lead: 1 pcs
User Manual: English, Italian, French, Romania, Russian, Spanish
