MOBIELE CB ZENDER SET MET KABEL EN MAGNEETVOET ANTENNE

€ 99,95 € 82,60

Artikelnummer

TCB560E/SP

TTI - TCB-560evo starter pac

Toon meer Toon minder

ArtikelnummerTCB560E/SP
MerkTTI

Aantal 3+ € 94,95 € 78,47

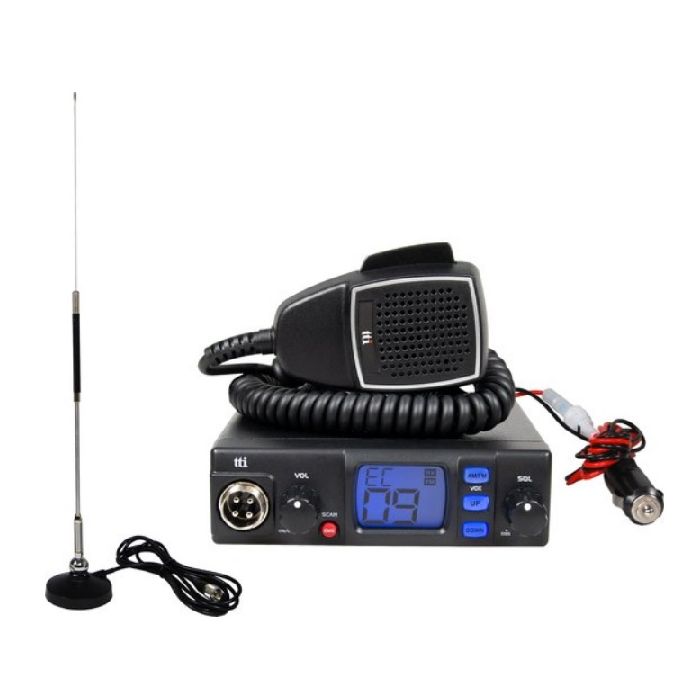

The TTI TCB-560evo starter pack is a complete pack, containing: TTI TCB-560evo radio and the Albrecht CBM-108 magnet antenna. Become part of the CB community with this ready to go starter pack. Including cigarette lighter plug for plug & play.

Frequency range: 26.965 - 27.405 MHz

Features

Modulation: AM / FM
Multi-bands: Yes
Output power: 4 Watt / Duty cycle 10% @ 13.2V DC
Channels: 40 AM / FM
Display type: LCD display
Display colors: Green / Orange / Purple / Dark Blue / Light Blue / Yellow / Clear Blue
VOX Function: Yes
Noise blanker: Yes
Squelch: DSS (Dynamic Squelch System) / Manual squelch /
Emergency channel: Yes
Scan function: Yes
External speaker socket: Yes

Electrical data (radio)

Voltage: 13,8 Volt / 24 Volt
Operating temperature: -10° to +55° C
Operating mode: F3E (FM) / A3E (AM)
Frequency control: PLL synthesizer
Frequency tolerance: 0.002 %

Mechanical data (radio)

Length: 135 mm
Height: 37 mm
Width: 124 mm
Weight: 655 gram
Antenna connector: UHF (PL)
Mike connector: 6 pin connector

Electrical data (antenna)

Electrical type: Central loaded
VSWR: ≤ 1.2
Bandwidth: 280 kHz ≤ 2.0
Power continues: 10 Watts (CW)
Power peak: 50 Watts (CW)
Impedance: 50 Ohm
Polarization: Linear vertical
Cable: Yes
Cable length: 3 meter / RG 58

Mechanical data (antenna)

Materials: Copper, brass, stainless steel, fiberglass
Height: 630 mm
Weight: 575 gram
Mounting type: 90 mm magnet

Inside the box

Transceiver: 1 pcs
Microphone: 1 pcs
Fixing screws: 1 set
Mounting bracket: 1 pcs
Power lead: 1 pcs
User Manual: English, Dutch
Antenna: 1 pcs
