ANTENNE MOBIEL 27MHZ MAGNEETVOET

€ 46,95 € 38,80

Artikelnummer

T4-27MAG

Sirio - T4 27 MAG

Toon meer Toon minder

ArtikelnummerT4-27MAG
MerkSIRIO

Aantal 5+ € 44,60 € 36,86

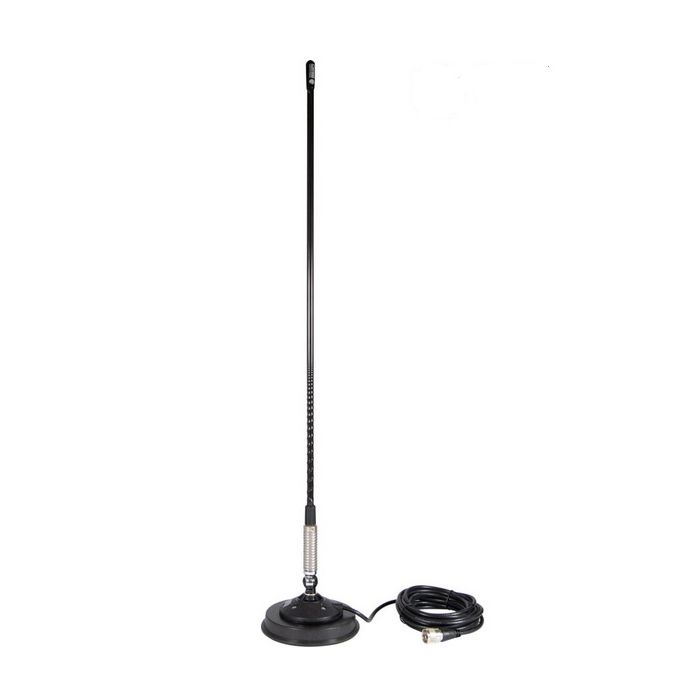

The Sirio T4 27 MAG is an antenna set with the popular Sirio T4 whip and the strong K-PO 125 magnet. The Sirio T4 is the improved and longer version of the Sirio T3 series. The T4 will give a better performance in most situations.

One of the most used antennas on trucks and agricultural machines. Tunable top screw with protective rubber cap.

Frequency range: 26.9 - 27.5 MHz

Electrical data

Electrical type: Logarithmic loaded
VSWR: ≤ 1.2
Bandwidth: 700 kHz (65 channels) ≤ 2.0
Maximum continuous power: 20 Watts (CW)
Power peak: 100 Watts (CW)
Impedance: 50 Ohm
Polarization: Linear vertical
Cable: Yes
Cable length: 4.4 meter / RG 58

Mechanical data (antenna)

Materials: Brass, stainless steel, nylon
Height: 735 mm
Weight: 200 gram

Mechanical data (magnet)

Cable length: 4.4 meter
Cable type: RG 58A/U
Weight: 1025 gram
Diameter magnet: 125 mm

Inside the box

Antenna: Yes
Radio connector: UHF-male (PL)
Mounting parts: Yes
Antenna cable: Yes
Installation manual: English, Italian
