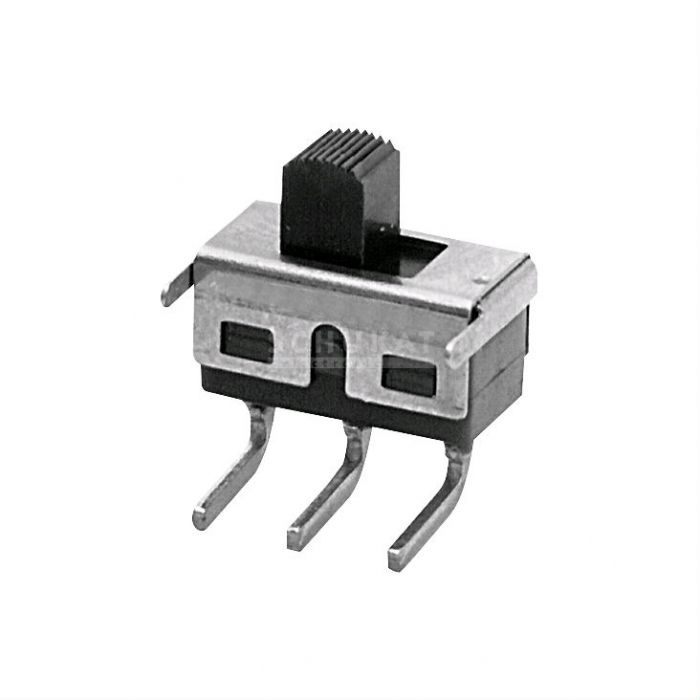

SCHUIF 1 X OM 0,4VA MAX./20V AC OR DC MAX. HORIZONTAAL
€ 2,25
€ 1,86
Artikelnummer
T222
- ArtikelnummerT222
- MerkSALECOM
- Aantal 5+ € 2,02 € 1,67
Features
| • With print (MSS13) or soldering (TS-11) connections which are sealed against dirt and fluxing agent • Washable using all conventional cleaning agents • Small dimensions • Suitable for use in applications with limited space |
 |
| Technical Specifications |
|
|
| Switching Capacity: | |
| 3A/250V AC | |
| MSS13_: | 0,4VA Max./20V AC or DC Max. |
| Switching Cycle Under Load: | 30.000 |
| Contact Resistance, Min.: | 10mOhm |
| Insulation Resistance, Min.: | 1000MOhm |
| Dilelectric Strength: | 1500Veff |
| Operating Temperature: | -30...+85°C |
| Contacts: | |
| MSS13_: | Brass, Gold-plated Over Nickel |
| Terminals: | |
| MSS13_: | Brass, Gold-plated Over Nickel |
| Sealing: | Epoxy |
| Operations: | Nylon |
| Shell Material: | Diallylphthalate (DAP) |
