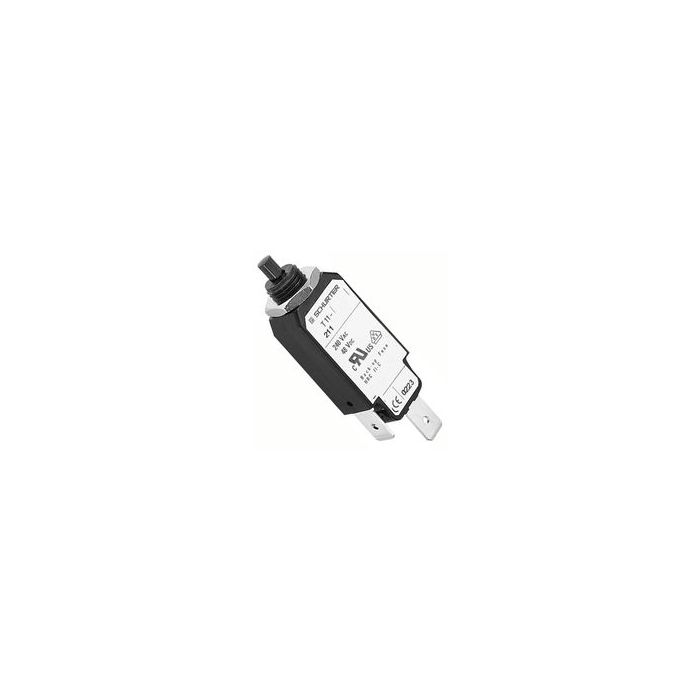

AUTOMATISCHE ZEKERING T11 3.5A 240VA
€ 9,95
€ 8,22
Artikelnummer
T11/035
- ArtikelnummerT11/035
- MerkSCHURTER
- Aantal 5+ € 8,94 € 7,39
Features
Single pole thermal circuit breaker
Ideal as replacement for fuses, especially for higher rated current
Advantage of being immune to high inrush currents and line transients
Easy screw mounting 3/827UNS2A, 6mm lenght
Quick connect terminals 6,3x0,8mm
Technical Specifications
Rated Voltage: 120V/240V AC
24V/32V/48V DC
Rated Current: Refer Part Description
Conditional Short Circuit Current (PC1, 240V AC): 2000A
Short Circuit Capacity
240V AC, IN<6,5A: 8xIn
240V AC, IN³6,5A: 96A
Dielectric Strenght: 4000V AC
Insulation Resistance (500V DC): >100MW
Ambient Temperature: -5...+60°C
Type of Tripping: Positively Trip-free
Weight: 10g
Single pole thermal circuit breaker
Ideal as replacement for fuses, especially for higher rated current
Advantage of being immune to high inrush currents and line transients
Easy screw mounting 3/827UNS2A, 6mm lenght
Quick connect terminals 6,3x0,8mm
Technical Specifications
Rated Voltage: 120V/240V AC
24V/32V/48V DC
Rated Current: Refer Part Description
Conditional Short Circuit Current (PC1, 240V AC): 2000A
Short Circuit Capacity
240V AC, IN<6,5A: 8xIn
240V AC, IN³6,5A: 96A
Dielectric Strenght: 4000V AC
Insulation Resistance (500V DC): >100MW
Ambient Temperature: -5...+60°C
Type of Tripping: Positively Trip-free
Weight: 10g
