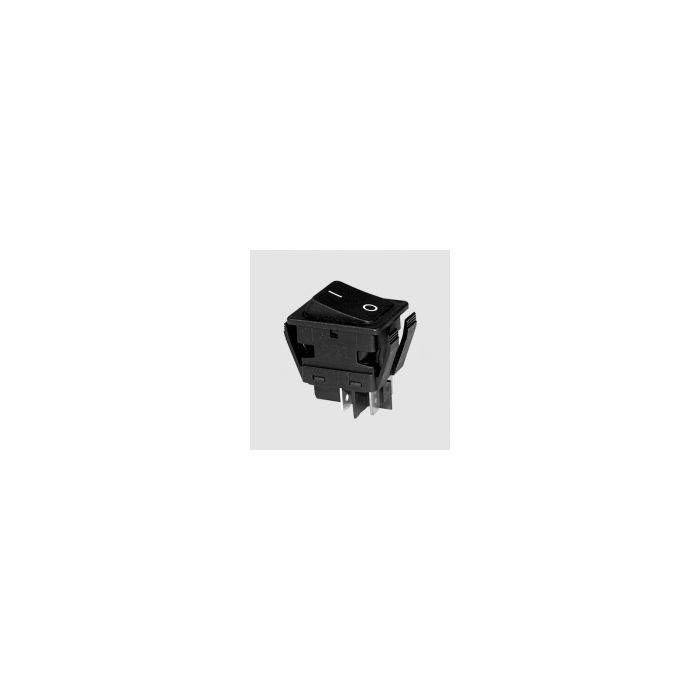

WIP 2 X MAAK 16A/250V MET I/O MARKERING (INSCHAKELSTROOM MAX. 150A)
€ 4,95
€ 4,09
Artikelnummer
SW2MG15
- ArtikelnummerSW2MG15
- MerkARCOLECTRIC
- Aantal 10+ € 4,45 € 3,68
Operating Voltage, Max.: 250V AC
Switching Current, Max.: 16A
Switching Current at Inductive Load, Max.: 4A
Inrush Current (EN61058-1): 150A
Ambient Temperature, Max.: 125°C
Insulation Resistance: >20MW
Contact Resistance
(New State, 12V DC/1A): <100mW
Contact Opeing Width: 3mm
Soldering Conditions (Hand Solder): 350°C/6s
Materials
Shell and Rocker: Nylon 6.6
Illuminated Rocker: Polycarbonate
Current-carrying Part: Cu Alloy
Contacts: Silver-plated
Flammabililty Class: UL94V2
Switching Current, Max.: 16A
Switching Current at Inductive Load, Max.: 4A
Inrush Current (EN61058-1): 150A
Ambient Temperature, Max.: 125°C
Insulation Resistance: >20MW
Contact Resistance
(New State, 12V DC/1A): <100mW
Contact Opeing Width: 3mm
Soldering Conditions (Hand Solder): 350°C/6s
Materials
Shell and Rocker: Nylon 6.6
Illuminated Rocker: Polycarbonate
Current-carrying Part: Cu Alloy
Contacts: Silver-plated
Flammabililty Class: UL94V2
