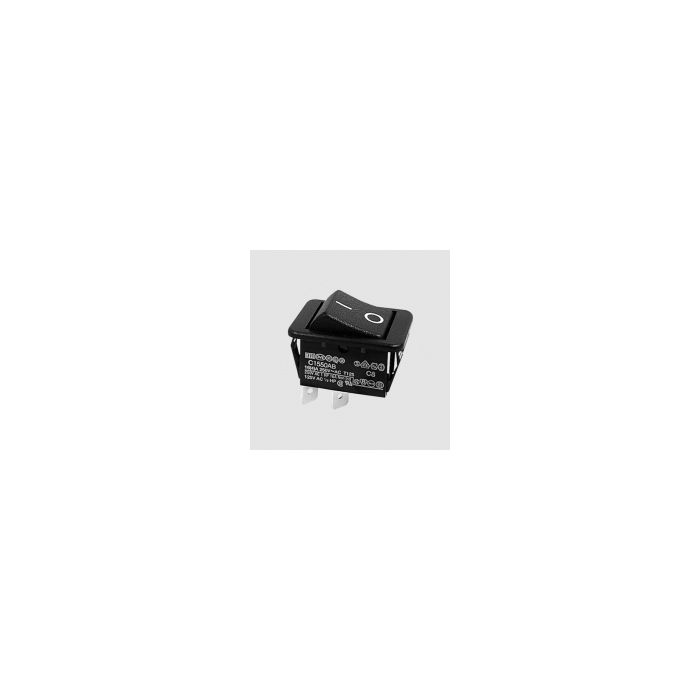

WIP 2 X MAAK 16A/250V MET I/O MARKERING (INSCHAKELSTROOM MAX. 36A)

€ 3,65 € 3,02
Artikelnummer
SW2MG13
  • ArtikelnummerSW2MG13
  • MerkARCOLECTRIC
  • Aantal 10+   € 3,28 € 2,71
Print deze pagina Print deze pagina
Operating Voltage, Max.: 250V AC
Switching Current, Max.: 16A
Switching Current at Inductive Load, Max.: 4A
Inrush Current (EN61058-1): 36A
Ambient Temperature, Max.: 125°C
Insulation Resistance: >20MW

Contact Resistance
(New State, 12V DC/1A): <100mW

Contact Opening Width
C1550AB01,: <3mm
Soldering Conditions (Hand Solder): 350°C/6s

Materials
Shell and Rocker: Nylon 6.6
Illuminated Rocker: Polycarbonate
Current-carrying Part: Cu Alloy
Contacts: Silver-plated
Flammability Class: UL94V2
