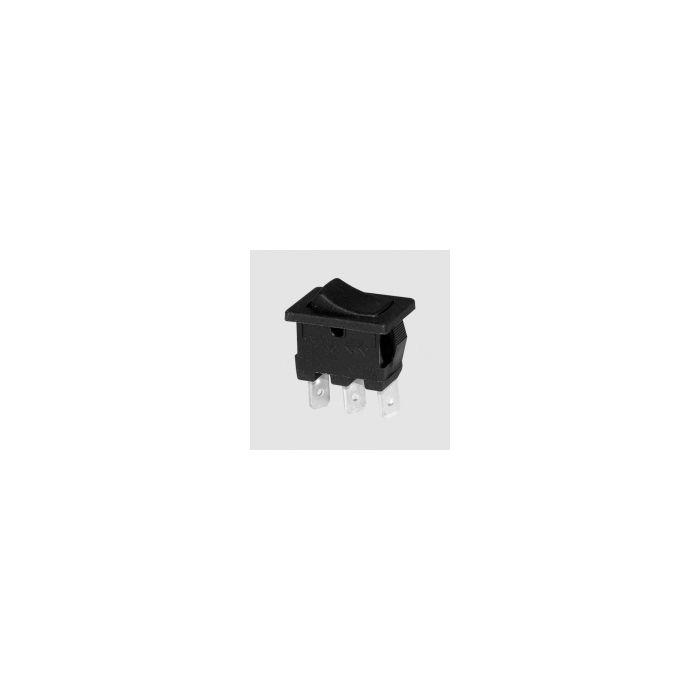

WIP 1 X OM 6A/250V

Operating Voltage, Max.: 250V AC
Switching Current, Max. 10A
Switching Current at Inductive Load, Max. 4A
Inrush Current (EN61058-1): 25A
Ambient Temperature, Max.: 90°C
Insulation Resistance: >20MW

Contact Resistance
(New State, 12V DC/1A): <100mW
Contact Opening Width: <3mm
Soldering Conditions (Hand Solder): 350°C/6s

Materials
Shell and Rocker: Nylon 6.6
Current-carrying Part: Cu Alloy
Contacts: Silver-plated
Flammability Class: UL94V2
