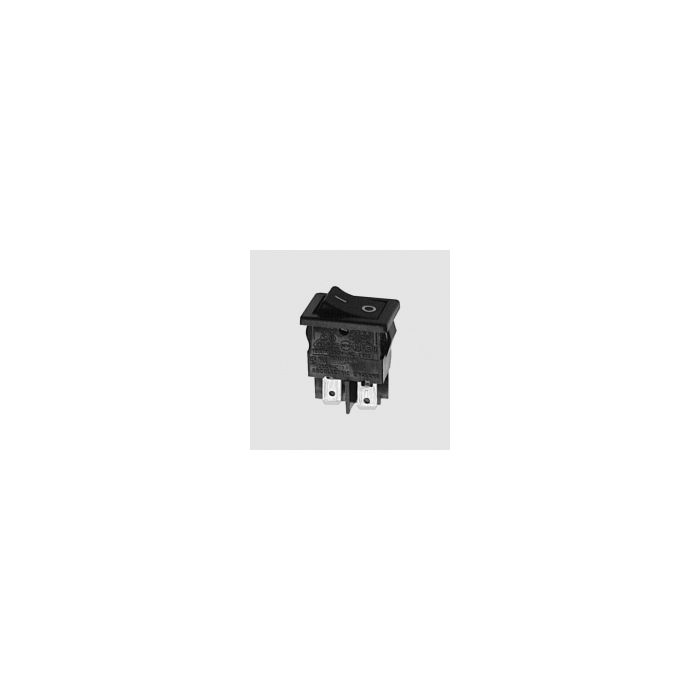

WIP 1 X MAAK 10A/250V MET I/O MARKERING (INSCHAKELSTROOM MAX. 150A)

Operating Voltage, Max.: 250V AC
Switching Current, Max.: 10A
Switching Current at Inductive Load, Max.: 6A
Inrush Current (EN61058-1): 85A

Ambient Temperature, Max.
H8500VB01: 125°C
Insulation Resistance: >20MW

Contact Resistance
(New State, 12V DC/1A): <100mW
Contact Gap: 3mm
Soldering Conditions (Hand Soldering): 350°C/6s

Materials
Shell and Rocker: Nylon 6.6
Illuminated Rocker: Polycarbonate
Current-carrying Part: Cu Alloy
Contacs: Silver-plated
Flammability Class: UL94V2
