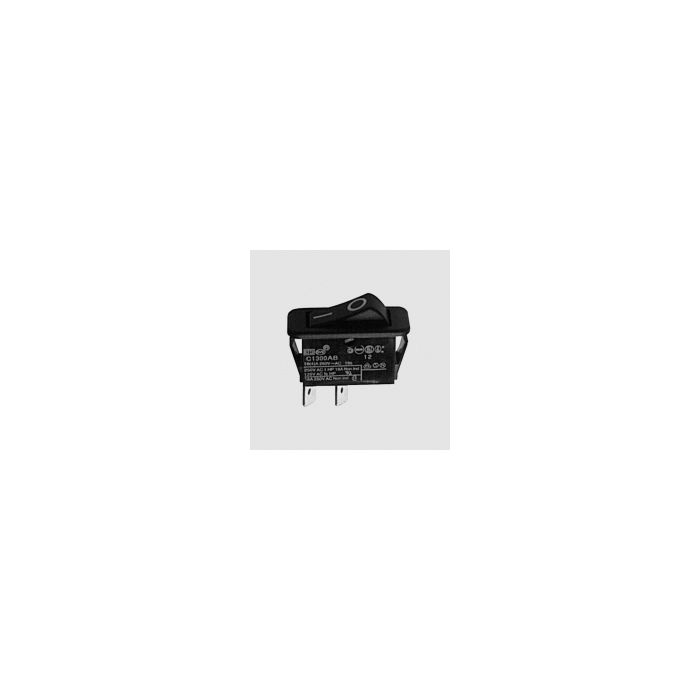

WIP 1 X MAAK 16A/250V MET I/O MARKERING (INSCHAKELSTROOM MAX. 150A)
€ 3,03
€ 2,50
Artikelnummer
SW1MG05
- ArtikelnummerSW1MG05
- MerkARCOLECTRIC
- Aantal 10+ € 2,72 € 2,25
Technical Specifications
Operating Voltage, Max.: 250V AC
Switching Current, Max.: 16A
Switching Current at Inductive Load, Max.
C1300AB01: 6A
Inrush Current (EN61058-1): 150A
Ambient Temperature, Max.
C1300AB01: 125°C
Insulation Resistance: >20MW
Contact Resistance
(New State, 12V DC/1A): <100mW
Contact Opening Width: <3mm
Soldering Conditions (Hand Solder): 350°C/6s
Materials
Shell and Rocker: Nylon 6.6
Current-carrying Part: Cu Alloy
Contacts: Silver-plated
Flammability Class: UL94V2
