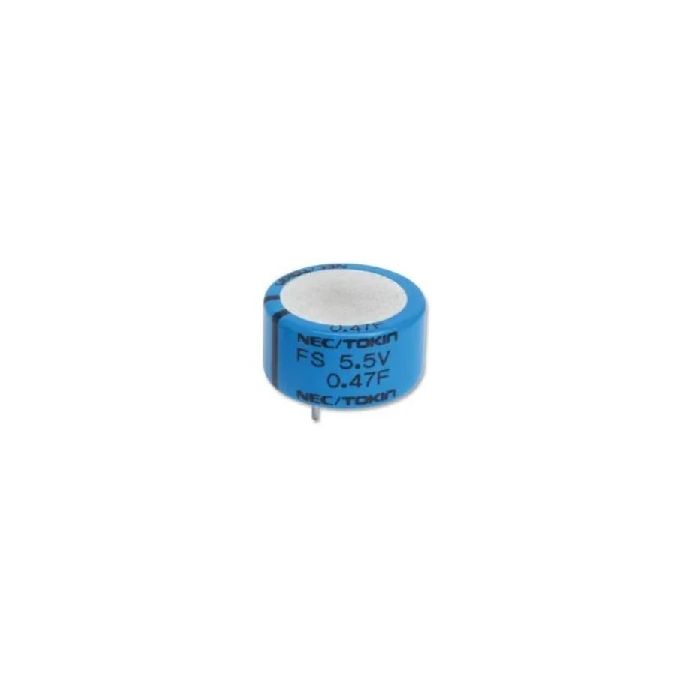

SUPERCAP 0,47F 5,5V 21,5X13MM P7,62
€ 4,21
€ 3,48
Artikelnummer
FS0H474ZF
- ArtikelnummerFS0H474ZF
- MerkKEMET
- Aantal 5+ € 3,99 € 3,30
Features
| • Maximum operating voltage: 5,5 VDC • Temperature range: –25...+70°C • Maintenance free • Highly reliable against liquid leakage • Lead-free and RoHS compliant • Max. solder temperature: 245°C/5s |
 |
| Technical Specifications |
| Part Nr. | CN/C | CN/D | UOP | RESR | IMax. | W |
| [F] | [F] | [V DC] | [Ohm] | [mA] | [g] | |
| FS0H223ZF | 0,022 | 0,033 | 5,5 | 60,0 | 0,033 | 1,6 |
| FS0H473ZF | 0,047 | 0,072 | 5,5 | 40,0 | 0,071 | 2,6 |
| FS0H104ZF | 0,10 | 0,15 | 5,5 | 25,0 | 0,15 | 4,1 |
| FS0H224ZF | 0,22 | 0,33 | 5,5 | 25,0 | 0,33 | 5,3 |
| FS0H474ZF | 0,47 | 0,75 | 5,5 | 13,0 | 0,71 | 10 |
| FS0H105ZF | 1,0 | 1,3 | 5,5 | 7,0 | 1,5 | 18 |
| CN/C/D = Rated Capacitance, Carge/Discharge System, UOP = Max. Operating Voltage, RESR = Max. ESR (@1kHz), IMax. = Max. Current (@30 Min.), W = Weight | ||||||
|
||||||
| Dimensions |
| Part Nr. | Ø D | H | P | l | d1 | d2 |
| [mm] | ||||||
| FS0H223ZF | 11,5 | 8,5 | 508 | 2,7 | 0,4 | 1,2 |
| FS0H473ZF | 13,0 | 8,5 | 5,08 | 2,2 | 0,4 | 1,2 |
| FS0H104ZF | 16,5 | 8,5 | 5,08 | 2,7 | 0,4 | 1,2 |
| FS0H224ZF | 16,5 | 13,0 | 5,08 | 2,7 | 0,4 | 1,2 |
| FS0H474ZF | 21,5 | 13,0 | 7,62 | 3,0 | 0,6 | 1,2 |
| FS0H105ZF | 28,5 | 14,0 | 10,16 | 6,1 | 0,6 | 1,4 |
