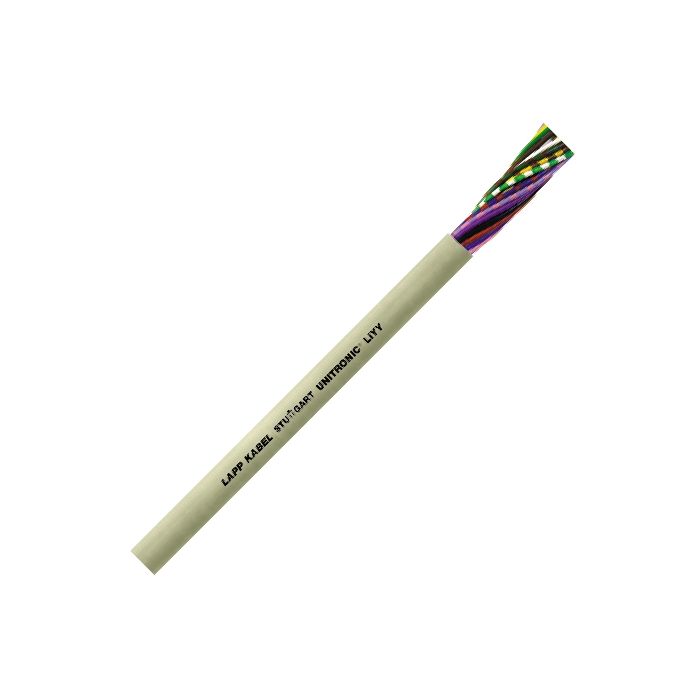

STUURKABEL 8X0.14MM2 BEIGE

€ 3,50 € 2,89
Artikelnummer
SK08014N
  • ArtikelnummerSK08014N
  • MerkBrand
  • Aantal 25+   € 3,15 € 2,60
Print deze pagina Print deze pagina

Design
Design
based on standard VDE 0812 and EN 50288-7
Certification
EN 13501-6 and EN 50575
Classification of fire behaviour
(article/dimension range see www.lappkabel.com/cpr)
Conductor
fine wire strands of bare copper wires
Insulation
special PVC-based compound
Core identification code
acc. to DIN 47100
Stranding
cores are stranded in layers
Outer sheath
special PVC-based compound
colour: grey (similar RAL 7032)
.
Electrical properties at 20 °C
Conductor resistance
0.14 mm²: max. 138.0 Ω/km
Specific volume resistivity
> 20 G Ω x cm
Mutual capacitance
C/C: approx. 120 nF/km
(at 800 Hz)
Inductance
approx. 0.65 mH/km
Maximum operating voltage
0.14 mm²: 350 V (not for power applications)
≥ 0.25 mm²: 500 V (not for power applications)
Must not be connected to the mains supply voltage.
Test voltage
0.14 mm²: 1200 V
≥ 0.25 mm²: 1500 V
Mechanical and thermal properties
Minimum bending radius
occasional flexing: 10 x outer diameter
fixed installation: 4 x outer diameter
Temperature range
flexing: - 5 ˚C up to +70 ˚C
fixed installation: - 40 ˚C up to +80 ˚C
Flammability
flame retardant acc. to IEC 60332-1-2 resp. EN 60332-1-2
General requirements
These cables are conform to
EU-Directive 2011/65/EU (RoHS, Restriction of the use of certain hazardous
substances) and EU-Directive 2014/35/EU (Low Voltage Directive).
A part of these cables (see www.lappkabel.com/cpr) are classified
in accordance with the EU-Regulation no. 305/2011 (CPR).
Environmental information
These cables meet the substance-specific requirements of the EU Directive 2011/65/EU (RoHS).
