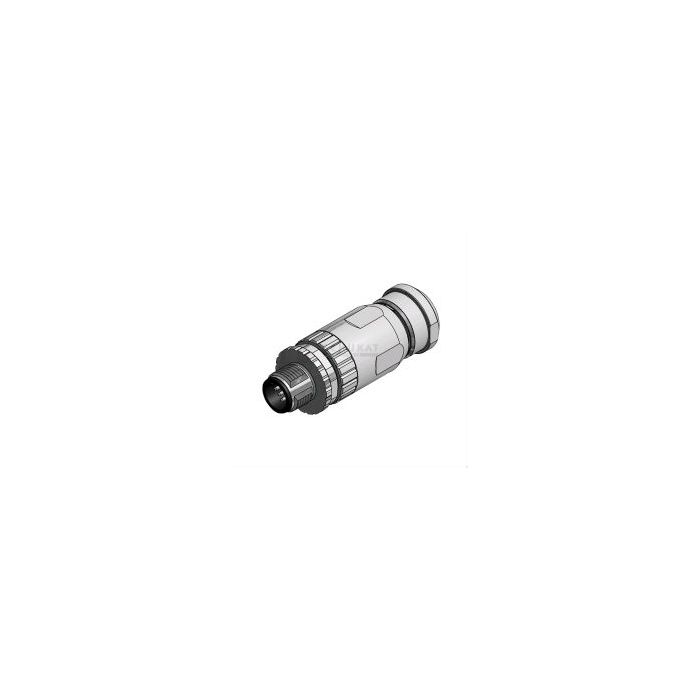

STEKKER MALE 5P SOLDEER IP67 AFGESCHERMD 0.75MM2

CONEC
Artikelnummer: M12AML05S
Uw prijs:
€ 11,53 Excl. BTW:
€ 13,95 Incl. BTW:
- +

Extra informatie

print

Features

• Cable connectors with screw locking
• Fixing thread M12x1
• Terminal sross section ((incl. end ferrule)
Technical Specifications

Connector Locking System: Screw
Connection Type Screw
Terminal Cross Section, Max.:
SAL-12(S)-_-075: 0,75mm2
SAL-12-_-150: 1,5mm2
Cable Outlet, Max.: 4...8mm
Degree of Protection: IP671)
Temperature Range: -30...+85°C
Rated Voltage
4-pole: 250V
5-pole: 60V
Rated Current (40°C):
SAL-12(S)-_-075: 4A
SAL-12-_-150: 7,5A
Insulation Resistance, Min.: 100MOhm
Mating Cycles, Min.: 100
Material of Contact: CuZn
Contact Plating: Ni, Au-galvanized
Material of Housing: PA6 GF (UL94)
1) in Mated Condition
