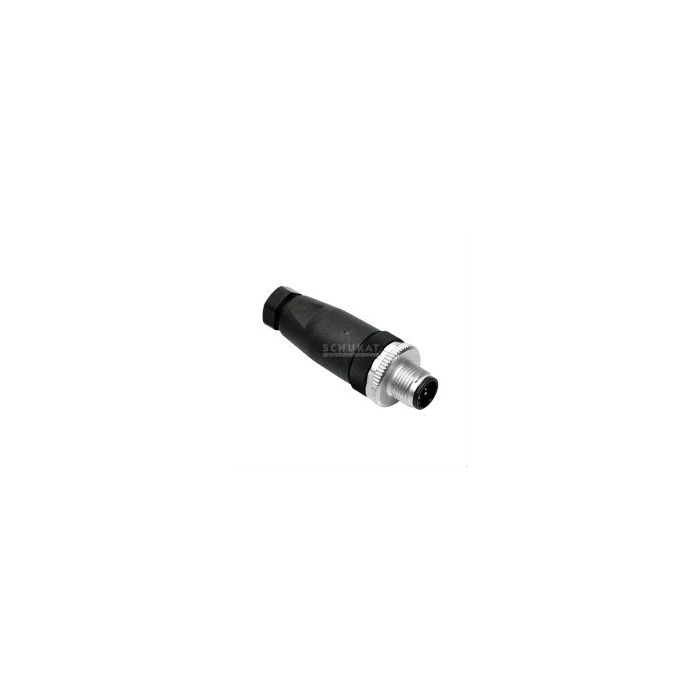

STEKKER MALE 5P SOLDEER IP67

<p><strong>Features<br /></strong></p>
<table style="width: 100%;" border="0" cellspacing="1" cellpadding="2">
<tbody>
<tr>
<td>&bull; Cable connectors with screw locking<br />&bull; Thread locking M12x1<br />&bull; Screw connection<br />&bull; Shield connection with shield ring/iris type spring<br />&bull; UL versions<br />&bull; Degree of protection IP67</td>
</tr>
<tr>
<td><img src="https://www.schukat.com/schukat/schukat_cms_en.nsf/blind.gif" alt="" width="1" height="20" /></td>
</tr>
</tbody>
</table>
<table style="width: 100%;" border="0" cellspacing="1" cellpadding="2">
<tbody>
<tr>
<td style="color: #ffffff; font-size: 12px;" bgcolor="#7C97A8"><strong>Technical Specifications<br /></strong></td>
</tr>
</tbody>
</table>
<table style="width: 100%;" border="0" cellspacing="1" cellpadding="2">
<tbody>
<tr>
<td><img src="https://www.schukat.com/schukat/schukat_cms_en.nsf/blind.gif" alt="" width="1" height="1" /></td>
</tr>
<tr>
<td width="50%">&nbsp;</td>
<td width="50%">&nbsp;</td>
</tr>
<tr bgcolor="#dee7ef">
<td colspan="1" align="left" valign="top">Connector Locking System:</td>
<td colspan="1" align="right" valign="top">Screw</td>
</tr>
<tr bgcolor="#f4f8fc">
<td colspan="1" align="left" valign="top">Termination:</td>
<td colspan="1" align="right" valign="top">Screw</td>
</tr>
<tr bgcolor="#dee7ef">
<td colspan="1" align="left" valign="top">Wire Gauge, Max.:</td>
<td colspan="1" align="right" valign="top">0,75mm<span>²</span></td>
</tr>
<tr bgcolor="#f4f8fc">
<td colspan="1" align="left" valign="top">Cable Outlet, Max.:</td>
<td colspan="1" align="right" valign="top">4...6mm</td>
</tr>
<tr bgcolor="#dee7ef">
<td colspan="1" align="left" valign="top">Degree of Protection:</td>
<td colspan="1" align="right" valign="top">IP67</td>
</tr>
<tr bgcolor="#f4f8fc">
<td colspan="1" align="left" valign="top">Mechanical Operating Life:</td>
<td colspan="1" align="right" valign="top">&gt;50 Cycles</td>
</tr>
<tr bgcolor="#dee7ef">
<td colspan="1" align="left" valign="top">Temperature Range:</td>
<td colspan="1" align="right" valign="top">-25...+85&deg;C</td>
</tr>
<tr bgcolor="#f4f8fc">
<td colspan="2" align="left" valign="top">Rated Voltage</td>
</tr>
<tr bgcolor="#dee7ef">
<td colspan="1" align="left" valign="top">M12ML04:</td>
<td colspan="1" align="right" valign="top">250V</td>
</tr>
<tr bgcolor="#f4f8fc">
<td colspan="1" align="left" valign="top">M12ML05</td>
<td colspan="1" align="right" valign="top">125V</td>
</tr>
<tr bgcolor="#dee7ef">
<td colspan="1" align="left" valign="top">Rated Current (40&deg;C):</td>
<td colspan="1" align="right" valign="top">4A</td>
</tr>
<tr bgcolor="#f4f8fc">
<td colspan="1" align="left" valign="top">Contact Resistance, Max.:</td>
<td colspan="1" align="right" valign="top">8mOhm</td>
</tr>
<tr bgcolor="#dee7ef">
<td colspan="1" align="left" valign="top">Material of Contact:</td>
<td colspan="1" align="right" valign="top">CuZn, Optaloy</td>
</tr>
<tr bgcolor="#f4f8fc">
<td colspan="1" align="left" valign="top">Material of Housing:</td>
<td colspan="1" align="right" valign="top">PA</td>
</tr>
</tbody>
</table>
