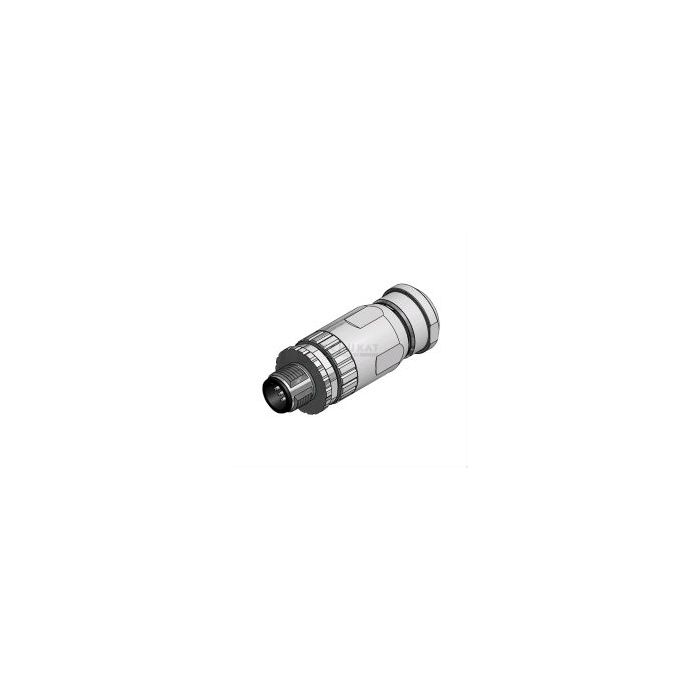

STEKKER MALE 4P SOLDEER IP67 AFGESCHERMD 0.75MM2
€ 12,95
€ 10,70
Artikelnummer
M12AML04S
- ArtikelnummerM12AML04S
- MerkCONEC
- Aantal 5+ € 12,29 € 10,16
Features
| • Cable connectors with screw locking • Fixing thread M12x1 • Terminal sross section ((incl. end ferrule) |
 |
| Technical Specifications |
|
|
| Connector Locking System: | Screw |
| Connection Type | Screw |
| Terminal Cross Section, Max.: | |
| SAL-12(S)-_-075: | 0,75mm2 |
| SAL-12-_-150: | 1,5mm2 |
| Cable Outlet, Max.: | 4...8mm |
| Degree of Protection: | IP671) |
| Temperature Range: | -30...+85°C |
| Rated Voltage | |
| 4-pole: | 250V |
| 5-pole: | 60V |
| Rated Current (40°C): | |
| SAL-12(S)-_-075: | 4A |
| SAL-12-_-150: | 7,5A |
| Insulation Resistance, Min.: | 100MOhm |
| Mating Cycles, Min.: | 100 |
| Material of Contact: | CuZn |
| Contact Plating: | Ni, Au-galvanized |
| Material of Housing: | PA6 GF (UL94) |
| 1) in Mated Condition | |
