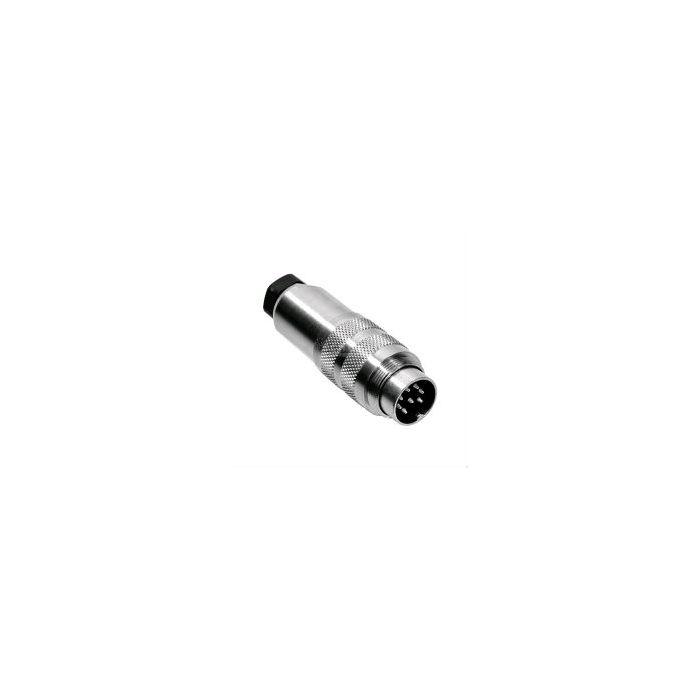

STEKKER MALE 12P SOLDEER IP67
€ 17,94
€ 14,83
Artikelnummer
M16ML12
- ArtikelnummerM16ML12
- MerkBINDER
- Aantal 5+ € 17,04 € 14,08
Features
• Cable connector with screw locking according to IEC60130-9 • Internal strain relief • Precision metal construction • excellent EMC shielding • Degree of protection IP67 |
Technical Specifications |
Connector Locking System: | Screw |
Termination: | Solder |
Wire Gauge, Max.: | 0,25mm2 |
Cable Outlet, Max.: | 4...6mm |
Degree of Protection: | IP67 |
Mechanical Operating Life: | >500 Cycles |
Temperature Range: | -30...+95°C |
Rated Voltage: | see Table |
Rated Current (40°C): | see Table |
Contact Resistance, Max.: | see Table |
Material of Contact: | CuZn |
Material of Housing: | CuZn, Nickel-plated |
Part-Nr. | Pole | UN | IN | R | Contact |
[V] | [A] | [mOhm] | Plating | ||
M16ML03 | 3 | 250 (32) | 7 | 5 | Ag |
M16ML05 | 5 | 250 (32) | 6 | 5 | Ag |
M16ML08 | 8 | 60 (32) | 5 | 5 | Ag |
M16ML12 | 12 | 60 (32) | 3 | 3 | Au |
M16FM03 | 3 | 250 (32) | 7 | 5 | Ag |
M16FM05 | 5 | 250 (32) | 6 | 5 | Ag |
M16FM08 | 8 | 60 (32) | 5 | 5 | Ag |
UN = Rated Voltage, IN = Rated Current (40°C), R = Contact Resistance, Max |
