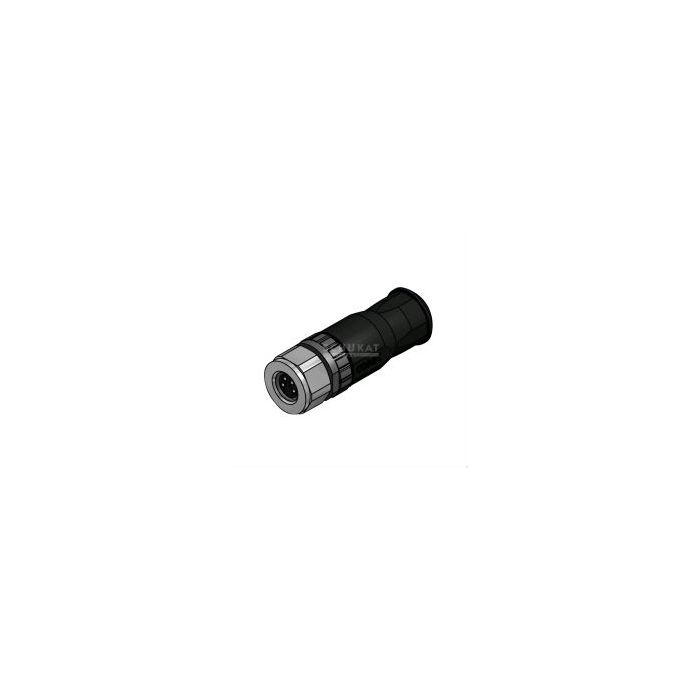

STEKKER M8X1 FEMALE 4P IP67
€ 11,95
€ 9,88
Artikelnummer
M8FM04
- ArtikelnummerM8FM04
- MerkCONEC
- Aantal 5+ € 11,35 € 9,38
Features
| • Cable connectors with screw locking • Fixing thread M8x1 |
 |
| Technical Specifications |
|
|
| Connector Locking System: | Screw |
| Connection Type | Screw |
| Screw Termination, Max.: | 0,5mm2 |
| Cable Outlet, Max.: | 4...5,5mm |
| Degree of Protection: | IP671) |
| Temperature Range: | -30...+85°C |
| Rated Voltage | |
| 3-pole: | 60V |
| 4-pole: | 30V |
| Rated Current (40°C): | 4A |
| Insulation Resistance, Max.: | ³100MW |
| Mating Cycles: | ³100 |
| Material of Contact: | CuZn |
| Contact Plating: | Ni, Au-galvanized |
| Material of Housing: | PA6 GF (UL94) |
| 1) in Mated Condition | |
