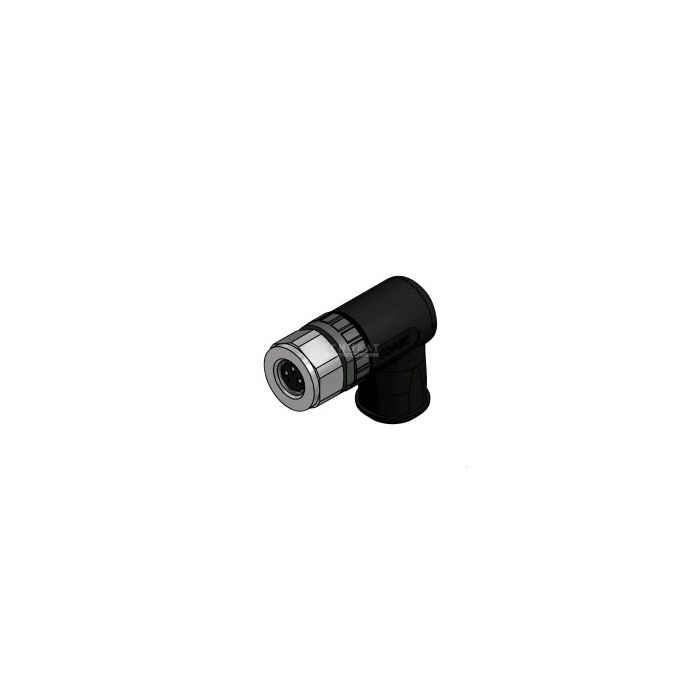

STEKKER M8X1 FEMALE 4P IP67 HAAKS
€ 11,95
€ 9,88
Artikelnummer
M8FM04H
- ArtikelnummerM8FM04H
- MerkCONEC
- Aantal 5+ € 11,35 € 9,38
Features
• Cable connectors with screw locking • Fixing thread M8x1 |
Technical Specifications |
Connector Locking System: | Screw |
Connection Type | Screw |
Screw Termination, Max.: | 0,5mm2 |
Cable Outlet, Max.: | 4...5,5mm |
Degree of Protection: | IP671) |
Temperature Range: | -30...+85°C |
Rated Voltage | |
3-pole: | 60V |
4-pole: | 30V |
Rated Current (40°C): | 4A |
Insulation Resistance, Max.: | ³100MW |
Mating Cycles: | ³100 |
Material of Contact: | CuZn |
Contact Plating: | Ni, Au-galvanized |
Material of Housing: | PA6 GF (UL94) |
1) in Mated Condition |
