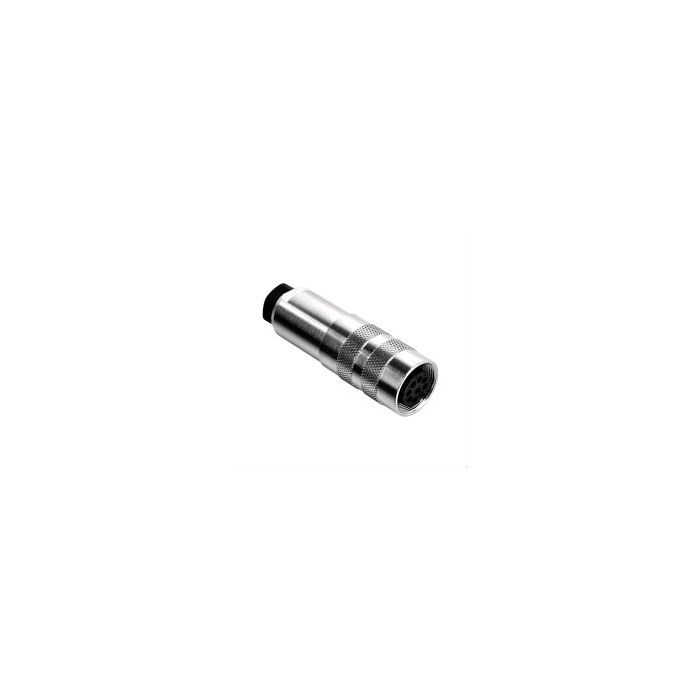

STEKKER FEMALE 5P SOLDEER IP67
€ 27,50
€ 22,73
Artikelnummer
M16FM05
- ArtikelnummerM16FM05
- MerkBINDER
- Aantal 5+ € 26,12 € 21,59
Features
| • Cable connector with screw locking according to IEC60130-9 • Internal strain relief • Precision metal construction • excellent EMC shielding • Degree of protection IP67 |
 |
| Technical Specifications |
|
|
| Connector Locking System: | Screw |
| Termination: | Solder |
| Wire Gauge, Max.: | 0,25mm2 |
| Cable Outlet, Max.: | 4...6mm |
| Degree of Protection: | IP67 |
| Mechanical Operating Life: | >500 Cycles |
| Temperature Range: | -30...+95°C |
| Rated Voltage: | see Table |
| Rated Current (40°C): | see Table |
| Contact Resistance, Max.: | see Table |
| Material of Contact: | CuZn |
| Material of Housing: | CuZn, Nickel-plated |
|
|
| Part-Nr. | Pole | UN | IN | R | Contact |
| [V] | [A] | [mOhm] | Plating | ||
| M16FM03 | 3 | 250 (32) | 7 | 5 | Ag |
| M16FM05 | 5 | 250 (32) | 6 | 5 | Ag |
| M16FM08 | 8 | 60 (32) | 5 | 5 | Ag |
| UN = Rated Voltage, IN = Rated Current (40°C), R = Contact Resistance, Max | |||||
