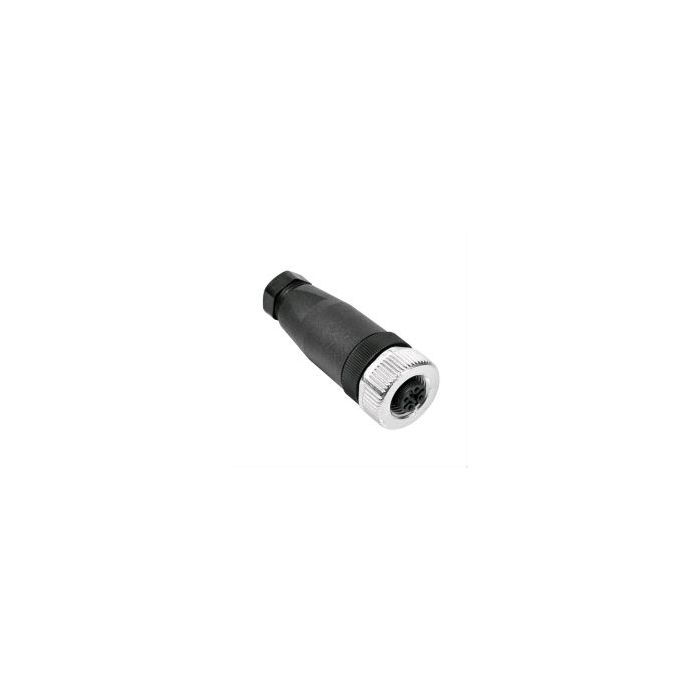

STEKKER FEMALE 4P SOLDEER IP67
€ 17,94
€ 14,83
Artikelnummer
M12FM04
- ArtikelnummerM12FM04
- MerkBINDER
- Aantal 5+ € 17,04 € 14,08
Features
| • Cable connectors with screw locking • Thread locking M12x1 • Screw connection • Shield connection with shield ring/iris type spring • UL versions • Degree of protection IP67 |
 |
| Technical Specifications |
|
|
| Connector Locking System: | Screw |
| Termination: | Screw |
| Wire Gauge, Max.: | 0,75mm2 |
| Cable Outlet, Max.: | 4...6mm |
| Degree of Protection: | IP67 |
| Mechanical Operating Life: | >50 Cycles |
| Temperature Range: | -25...+85°C |
| Rated Voltage | |
| 4 pol | 250V |
| 5 pol | 125V |
| Rated Current (40°C): | 4A |
| Contact Resistance, Max.: | 8mOhm |
| Material of Contact: | CuZn, Optaloy |
| Material of Housing: | PA |
