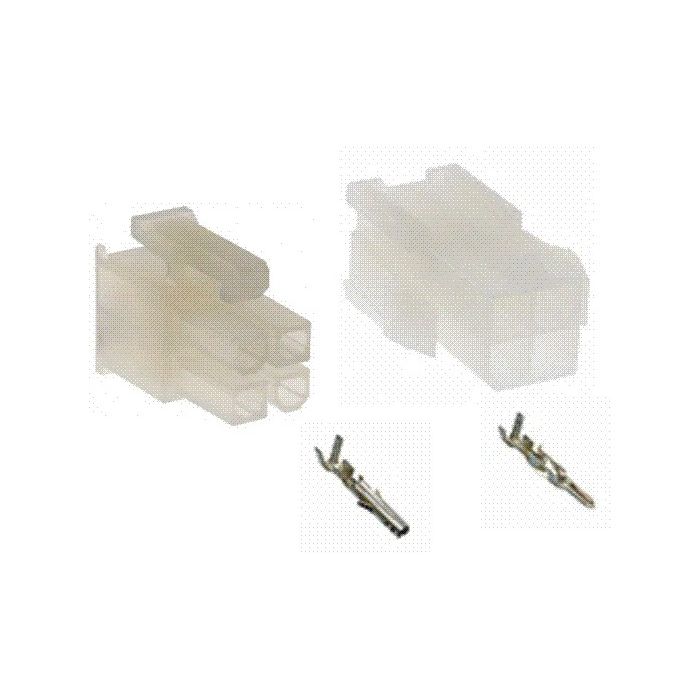

STEKKER 4V MALE+FEMALE

Physical
Breakaway No
Circuits (maximum) 4
Color - Resin Natural
Flammability 94V-2
Gender Receptacle
Glow-Wire Compliant No
Material - Resin Nylon
Net Weight 0.657/g
Number of Rows 4
Packaging Type Bag
Panel Mount No
Pitch - Mating Interface 4.20mm
Pitch - Termination Interface 4.20mm
Polarized to Mating Part Yes
Stackable No
Temperature Range - Operating -40°C to +105°C
Electrical
Current - Maximum per Contact 13.0A
