SATA 6GB/S 4 X SATA, RAID 0,1,10,JBOD + 2 X MSATA PCIE

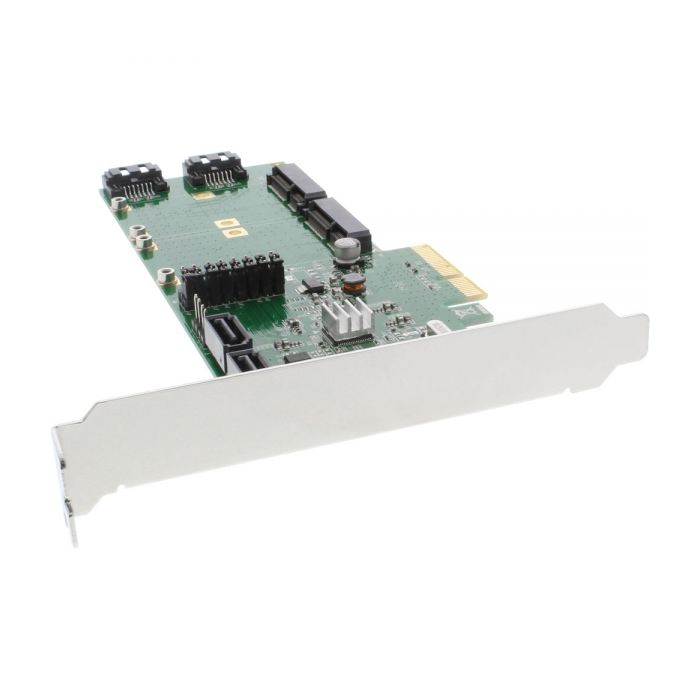

The PCI Express card expands your PC by four SATA ports. Two of those ports can be configured for either common SATA use or mSATA use. You can connect devices like e.g. hard drives, mSATA SSD, DVD-drives etc. to the card. And its hyperduo (HDD + SSD hybrid) function can enhance your overall system performance in a cost effective way.

4-lane PCI-Express form factor
2-Lane PCI-Express 2.0 interface supports communication bandwidth up to 10.0Gbps
Supports PCI-Express data transfer rate up to 5.0/2.5Gbps
Fully Plug and Play compliant
Supports both Standard and Low profile
Available in gift box packaging
Supports Windows 8 / Windows 7 / Vista / XP / 2000 / Server 2003-2008 32/64-bit, and Linux
Serial ATA (SATA) interface: Supports 2 internal SATA 6G ports and 2 mSATA or internal SATA 6G ports set manually by users
Supports Hardware RAID 0, 1, 10 and JBOD
Supports HyperDuo mode, Safe mode (Mirrored Protection) and Capacity mode(Cost-Optimized)
Up to 4 SATA devices with point-to-point connectivity
Compliant with Serial ATA Specification 3.0 with communication speed of 6.0Gbps
Backwards compatible with SATA II (3.0Gbps) and SATA I (1.5Gbps)
Bootable from attached HDD
Supports Native Command Queuing (NCQ)
FIS based Port Multiplier support up to 20 Drives
Supports SATA port Hot-Plug
Package Contents: mSATA 6G card x 1, Driver CD x 1, User’s manual x 1
