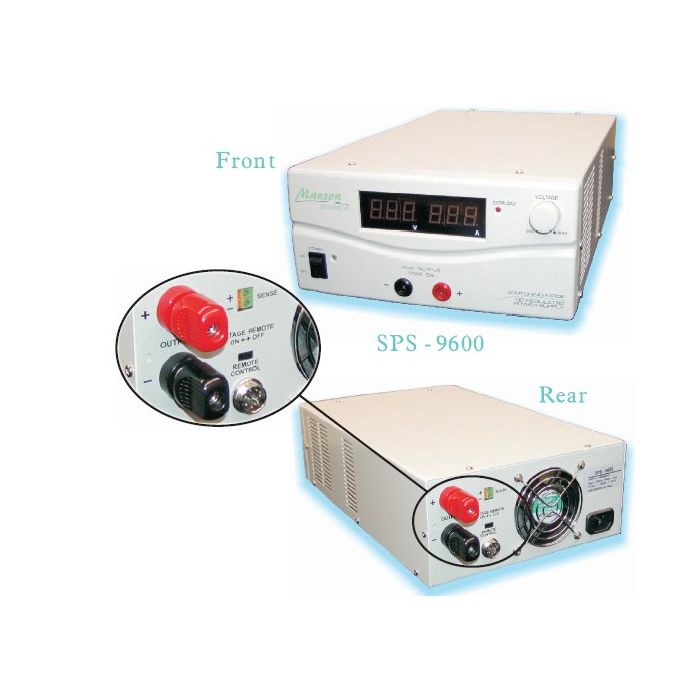

MAAS SPS-9600 VOEDING 1-15VDC
€ 419,94
€ 347,06
Artikelnummer
SPS9600
- ArtikelnummerSPS9600
- MerkMAAS
- Aantal 3+ € 398,94 € 329,70
Features
Total max. continuous output current 60A (SPS-9600) / 30A (SPS-9602)
Main Output / Remote Sensing / Remote Control / terminals at the back
Front terminals 5A (SPS-9600) / 3A (SPS-9602) limiting
Adjustable output voltages 1 to 15Vdc (SPS-9600) / 1 to 30Vdc (SPS-9602)
Remote Sensing for remote point of regulation
Remote control terminals for output voltage adjustment and *on/off*
Light weight and small size
Overload / Over-temperature / Short Circuit Protections
Constant Current Limiting Protection with LED indicator showing overloading
Variable speed thermally controlled fan
High RFI stability
Active Power Factor Correction (P.F. > 0.97)
Housing are available in (Pantone warm grey 1C or Pantone dark grey 433C )
* Remote output on/off is an added function for protection after October 2004*
Specifications
Variable Output Voltage 1 - 15 V DC
Total Rated Output Current ( Main output + Front Output ) 60A
Rated Output current ( Main Output ) 60A
Rated Output Current ( Front Output ) 5A
Load Regulation ( Main Output ) 0.1% + 5mV
Line Regulation ( Main Output ) 0.05% + 3mV
Ripple & Noise ( peak-peak ) 50mV p-p
Input Voltage 230V AC / 50Hz (or on request)
Efficiency > 85%
Meter Type LED Meter
Voltmeter Range 3 digit display
Ammeter Range 3 digit display
Meter Accuracy ± 1% +1 count
Protection Devices Overload (Constant Current Limiting), Short Circuit, Over Temperature, OVP
Cooling System Variable Speed Thermally Control Fan
Special feature Remote Sensing, Remote output voltage control and *on/off*
* Remote on/off only for production after October 2004 *
Approvals CE-EMC : EN 55022, CE-LVD: EN 60950
Dimensions ( W x H x D ) 220 x 110 x 360 (mm)
Weight 5.8 Kgs
Remarks Power factor correction >= 0.97 at optimal load
