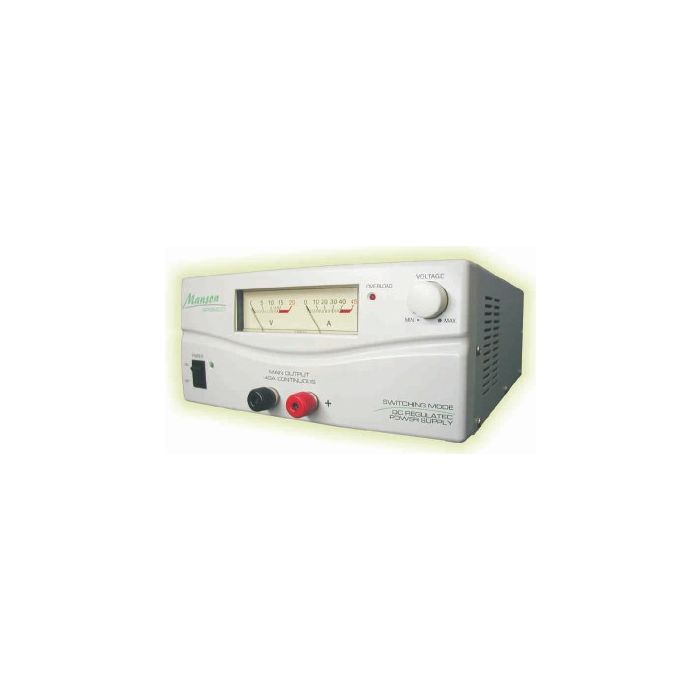

MAAS SPS-8400 VOEDING 3-15VDC

Features
40A current output
High efficiency
Adjustable output voltages 3V to 15V
Fixed voltage mode at 13.8V
Light weight and small size
Overload temperature protection
Current fold-back circuit with LED indicator prevents overloading
Over voltage protection at 16.5V
Variable speed thermally controlled fan
High RFI stability
Power factor correction >0.95
Housing are available in (Pantone warm grey 1C or Pantone dark grey 433C )

Specifications
Variable Output Voltage 3-15 VDC
Fixed Output Voltage Mode 13.8 VDC
Rated Output Current 40A
Ripple and Noise (P-P) 50mV
Load Regulation 200mV
Line Regulation 50mV
Input Voltage 230VAC / 50Hz (120V / 60Hz or on request)
Efficiency > 78%
Meter Type Analog Meter LED Meter
V meter Range 0 - 20V 3 digit display
A meter Range 0 - 45A 3 digit display
Meter Accuracy 7% fsd 1% + 2 Digits
Protection Devices Overload, Short Circuit, Over Temperature, OVP
Cooling System Variable Speed Thermally Control Fan
Approvals CE EN61558, EN60950, EN55022, EN55011
Dimensions (WxHxD) 220x110x300 (mm)
Weight 3.5 Kg
Remarks Power factor correction > 0.95 at optimal load
