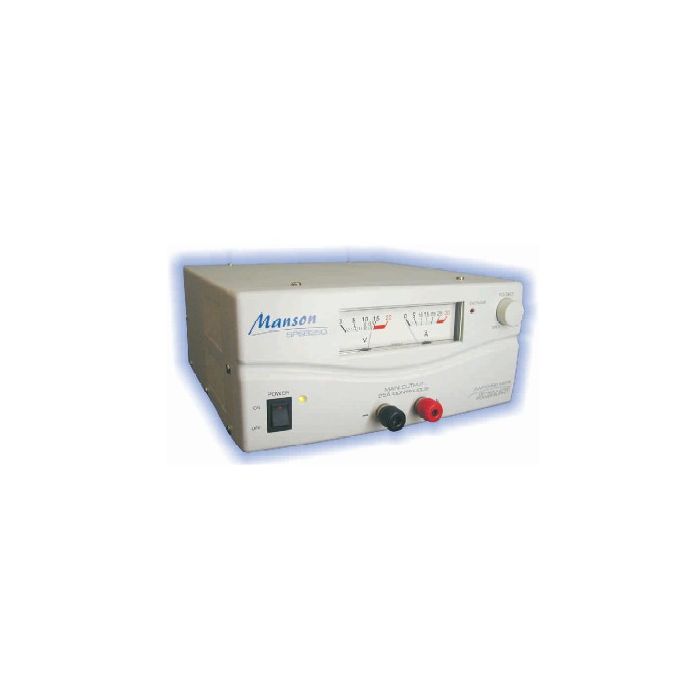

REGELBARE VOEDING 1X 3-15V 25A ANALOOG

Features
High Efficiency
25A current output
Adjustable Output Voltages 3V to 15V
Fixed Votage Mode at 13.8V
Light Weight and Small Size
Over Temperature Protection
Current fold-back circuit with LED indicator prevents Overloading
Over voltage protection at 16.5V
Variable Speed Thermally Controlled Fan
High RFI Stability
Power factor correction > 0.95

Specifications
Variable Output Voltage 3-15 VDC
Fixed Output Voltage Mode 13.8 VDC
Rated Output Current 25A
Input Voltage 230Vac/50Hz
Load Regulation 200mV
Line Regulation 50mV
Ripple & Noise 5mV
Efficiency > 78%
Meter Type Analog LED
Ammeter Range 0 - 30A 3 Digit Displaly
Voltmeter Range 0 - 20V 3 Digit Displaly
Meter Accuracy 7% fsd 1% + 2 Last Digit
Protection Overload, Short Circuit, Over Temperature.
Cooling System Variable Speed Thermally Control Fan
Approvals CE EN60950, EN55022
Dimensions (WxHxD) 220x110x220 (mm)
Weight 2.7 Kg
