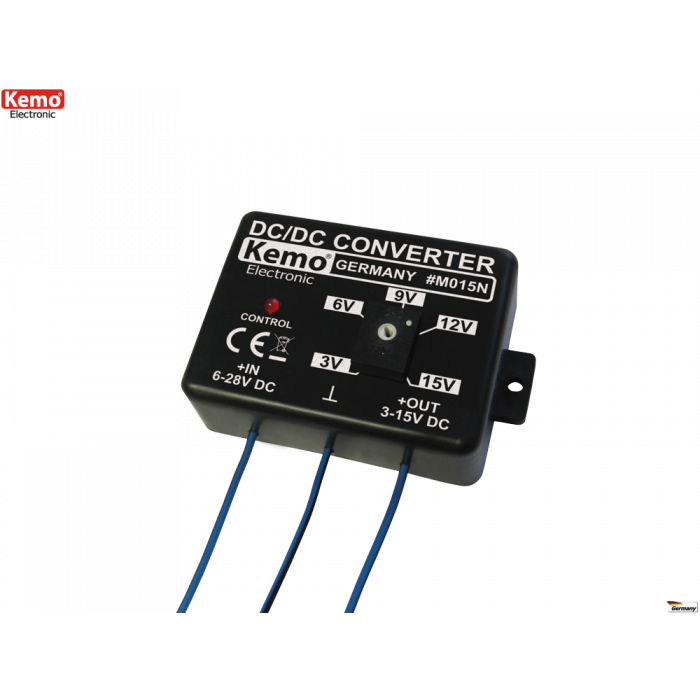

SPANNINGSOMVORMER 6-28V - 3-15V MAX. 1.5A

€ 18,95 € 15,66

Artikelnummer

M015N

x

Toon meer Toon minder

Technical Data
Input voltage	6 - 28 V/DC
Output voltage adjustable	3 - 15 V/DC (electronically stabilized)
Note	The input voltage must be at least 3 V higher than the adjusted output voltage
Max. output current	1,5 A
Max. dissipation	approx. 3 W without heat sink, approx. 10 W with heat sink (not enclosed)
Dimensions	approx. 60 x 45 x 20 mm (without fastening straps)
