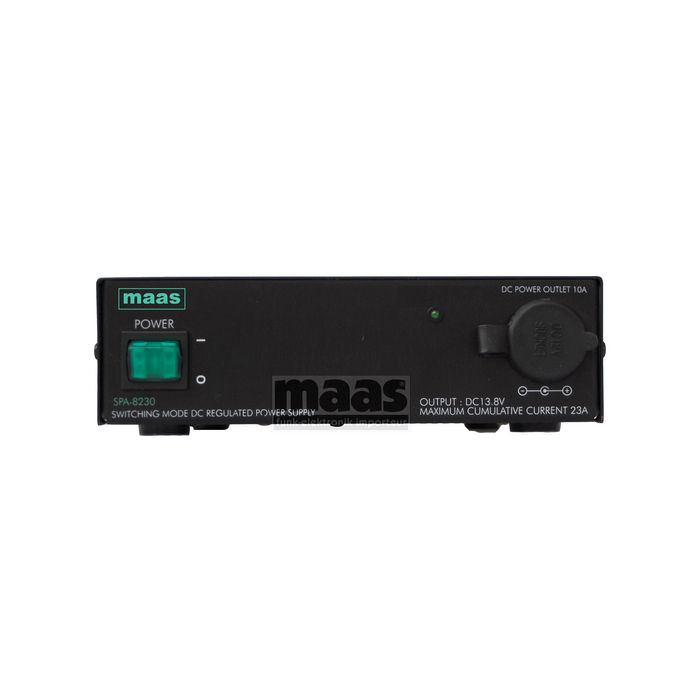

MAAS SPA-8230 VOEDING 13,8VDC

Features
High RFI stability
Over Voltage Protection at 16.5V
Current fold back overload protection with LED indicator
Short Circuit Protection
Over Temperature Cut-off Protection
High efficiency > 78%
Power Factor Correction > 0.95
Variable speed thermostatic controlled fan for quiet operation
Light weight and small size
Housing are available in (Pantone warm grey 1C or Pantone dark grey 433C )

Specifications
Fixed Output Voltage 13.8 VDC
Rated Output Current 25A
Ripple and Noise (P-P) 50mV
Load Regulation 200mV
Line Regulation 50mV
Input Voltage 230VAC / 50Hz
Efficiency > 78%
Dynamic Power Factor Correction > 0.95
Cooling Method Variable speed thermally controlled fan
Protection Devices Overload, Short Circuit, Over Temperature, OVP
Indicator Bi-colour LED (Green and Red)
Approvals CE EN60950, EN55022
Dimensions (WxHxD) 220 x 110 x 220 (mm)
Weight 2.7 KG
